DAC3154 Series

Dual-channel, 10-bit, 500-MSPS digital-to-analog converter (DAC)

Catalog

Dual-channel, 10-bit, 500-MSPS digital-to-analog converter (DAC)

Part	INL/DNL (LSB)	Settling Time	Package / Case	Differential Output	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits [custom]	Supplier Device Package	Data Interface	Architecture	Reference Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of DAC's	Supplied Contents	Sampling Rate (Per Second)	DAC Type	Utilized IC / Part
Texas Instruments DAC3154IRGCR	0.04 LSB 0.15 LSB	11 ns	64-VFQFN Exposed Pad		Surface Mount	Current - Unbuffered	85 °C	-40 °C	10	64-VQFN (9x9)	LVDS - Parallel	Current Source	External Internal	1.71 V	1.89 V

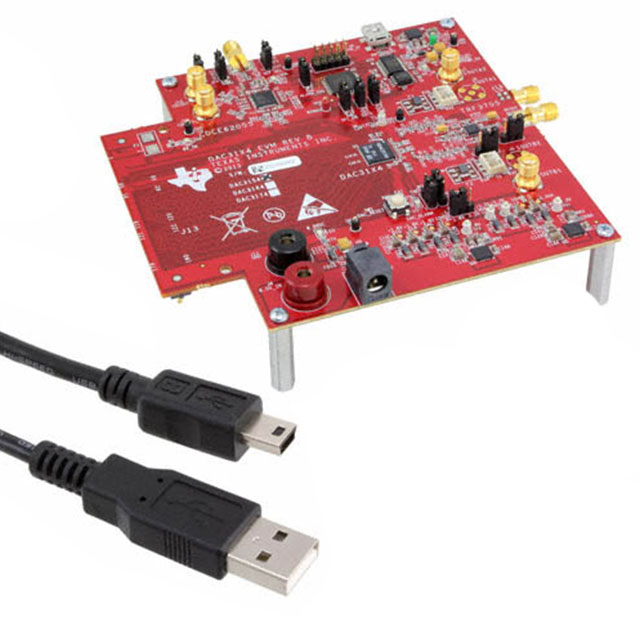

Texas Instruments DAC3154EVM		11 ns							10		CMOS LVDS Parallel					2	Board(s)	500 M	Current	DAC3154

Catalog

Dual-channel, 10-bit, 500-MSPS digital-to-analog converter (DAC)

Key Features

• Dual ChannelResolutionDAC3154: 10-BitDAC3164: 12-BitMaximum Sample Rate: 500 MSPSPin Compatible Family with DAC3174 andDAC3151/DAC3161/DAC3171Input Interface:12-/10-Bit Wide LVDS InputsInternal FIFOChip to Chip SynchronizationPower Dissipation: 460mWSpectral Performance at 20 MHz IFSNR: 62 dBFS for DAC3154, 72 dBFS for DAC3164SFDR: 76 dBc for DAC3154, 77 dBc for DAC3164Current Sourcing DACsCompliance Range: –0.5V to 1VPackage: 64 Pin QFN (9x9mm)Dual ChannelResolutionDAC3154: 10-BitDAC3164: 12-BitMaximum Sample Rate: 500 MSPSPin Compatible Family with DAC3174 andDAC3151/DAC3161/DAC3171Input Interface:12-/10-Bit Wide LVDS InputsInternal FIFOChip to Chip SynchronizationPower Dissipation: 460mWSpectral Performance at 20 MHz IFSNR: 62 dBFS for DAC3154, 72 dBFS for DAC3164SFDR: 76 dBc for DAC3154, 77 dBc for DAC3164Current Sourcing DACsCompliance Range: –0.5V to 1VPackage: 64 Pin QFN (9x9mm)

Description

The DAC3154/DAC3164 are dual channel 10-/12-bit, pin-compatible family of 500 MSPS digital-to-analog converters (DAC). The DAC3154/DAC3164 use a 10-/12-bit wide LVDS digital bus with an input FIFO. FIFO input and output pointers can be synchronized across multiple devices for precise signal synchronization. The DAC outputs are current sourcing and terminate to GND with a compliance range of –0.5 to 1V. DAC3154/ DAC3164 are pin compatible with the dual-channel, 14-bit, 500 MSPS digital-to-analog converters DAC3174, and the single-channel, 14-/12-10-bit, digital-to-analog converters DAC3171/DAC3161/DAC3151. The devices are available in a QFN-64 PowerPAD package is specified over the full industrial temperature range (–40°C to 85°C). The DAC3154/DAC3164 are dual channel 10-/12-bit, pin-compatible family of 500 MSPS digital-to-analog converters (DAC). The DAC3154/DAC3164 use a 10-/12-bit wide LVDS digital bus with an input FIFO. FIFO input and output pointers can be synchronized across multiple devices for precise signal synchronization. The DAC outputs are current sourcing and terminate to GND with a compliance range of –0.5 to 1V. DAC3154/ DAC3164 are pin compatible with the dual-channel, 14-bit, 500 MSPS digital-to-analog converters DAC3174, and the single-channel, 14-/12-10-bit, digital-to-analog converters DAC3171/DAC3161/DAC3151. The devices are available in a QFN-64 PowerPAD package is specified over the full industrial temperature range (–40°C to 85°C).
