19460100 Series
Manufacturer: HARTING
Beta
⌘K

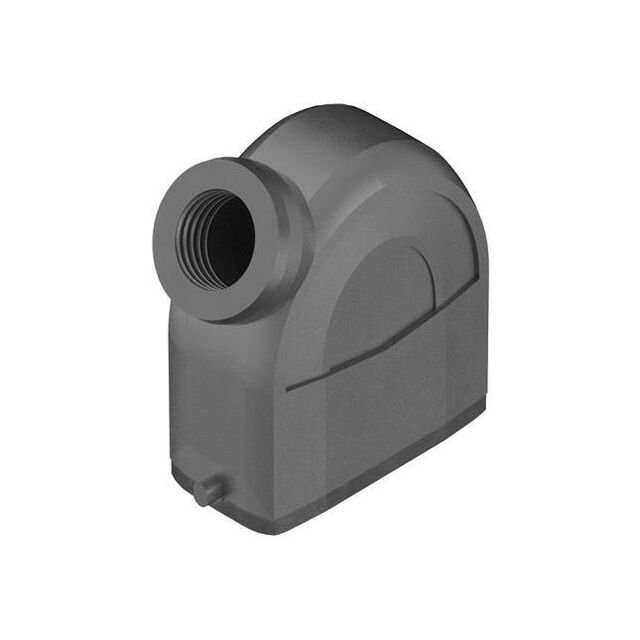

HAN-ECO 10A HOOD SIDE ENTRY M25 W/O GLAND
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Size | Housing Color | Housing Material | Ingress Protection | Connector Type | Style | Thread Size | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 125 °C | -40 C | Locking Clip (1) on Base Bottom | 10 A | Black | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood | Side Entry | M25 | |||||||
 HARTING | 125 °C | -40 C | Locking Clip (1) on Base Bottom | 10 A | Black | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Box Mount | Side Entry | M25 | 50 mm | 1.969 in | 61.15 mm | 2.407 in | 80.6 mm | 3.173 in | |

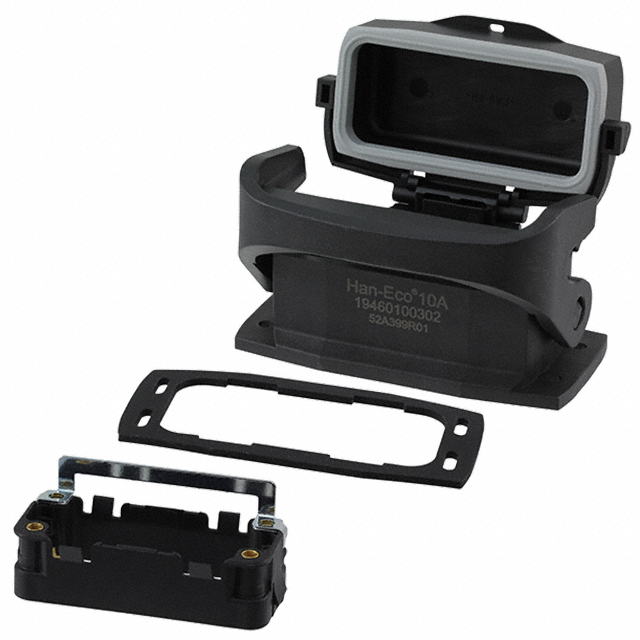

 HARTING | 125 °C | -40 C | Locking Clip (1) on Base Bottom | 10 A | Black | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Bottom Entry | 40 mm | 1.575 " | 27 mm | 1.063 in | 81 mm | 3.189 in | Cover | |
 HARTING | 125 °C | -40 C | Locking Clip (1) on Base Bottom | 10 A | Black | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood | Top Entry | M25 | |||||||

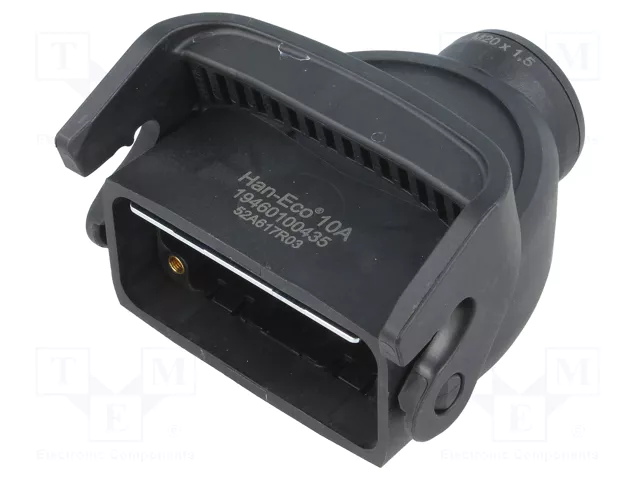

 HARTING | 125 °C | -40 C | Locking Clip (1) on Hood | 10 A | Black | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood - Coupling | Top Entry Top or Bottom Entry | M20 | Cable to Cable |
