SWITCH TACT SPST-NO 0.012A 24V
| Part | Switch Function | Features | Illumination | Circuit | Outline Width | Outline Length | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Termination Style | Actuator Height off PCB (Vertical) | Actuator Type | Contact Rating (Current) | Operating Force | Actuator Orientation | Number of Positions | Shielding | Connector Type | Length | Number of Rows | Pitch - Connector | Cable Termination | Color | Includes Total Count | Includes | Center Contact Plating | Body Finish | Body Material | Housing Color | Connector Style | Center Contact Material | Fastening Type | Mounting Feature | Contact Termination | Number of Ports | Shield Termination | Style | Contact Material | Voltage Rating | Insulation Height | Termination | Contact Finish - Post | Contact Shape | Material Flammability Rating | Insulation Material | Contact Finish - Mating | Number of Positions Loaded | Pitch - Mating | Insulation Color | Contact Type | Current Rating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

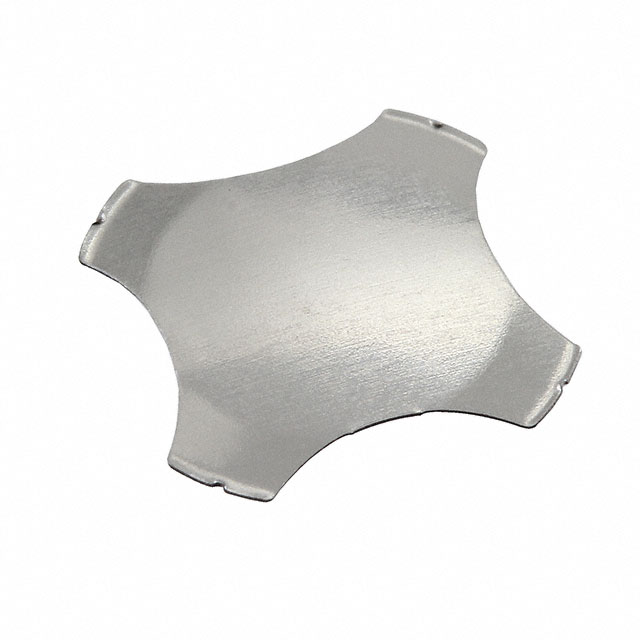

 Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 7 mm | 7 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.5 mm | Snap Dome | 0.012 A | 280 gf | Top Actuated | |||||||||||||||||||||||||||||||||||||

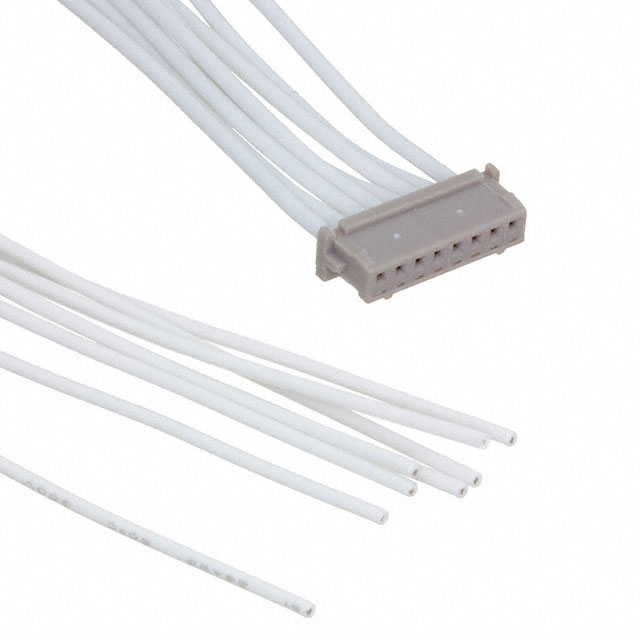

 Keystone Electronics | Polarizing Key | 8 | Unshielded | Socket to Cable | 0.5 ft | 1 | 0.05 in | Crimp | Individual White | |||||||||||||||||||||||||||||||||||||||||||
 Keystone Electronics | Panel Mount | Female Socket Jack | 3 pcs | Connector Nut Washer | Tin | Nickel | Brass | Silver | F Type | Phosphor Bronze | Threaded | Bulkhead Rear Side Nut | Solder | 1 | Solder | |||||||||||||||||||||||||||||||||||||
Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 8.4 mm | 8.4 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.6 mm | Snap Dome | 0.012 A | 340 gf | Top Actuated | |||||||||||||||||||||||||||||||||||||

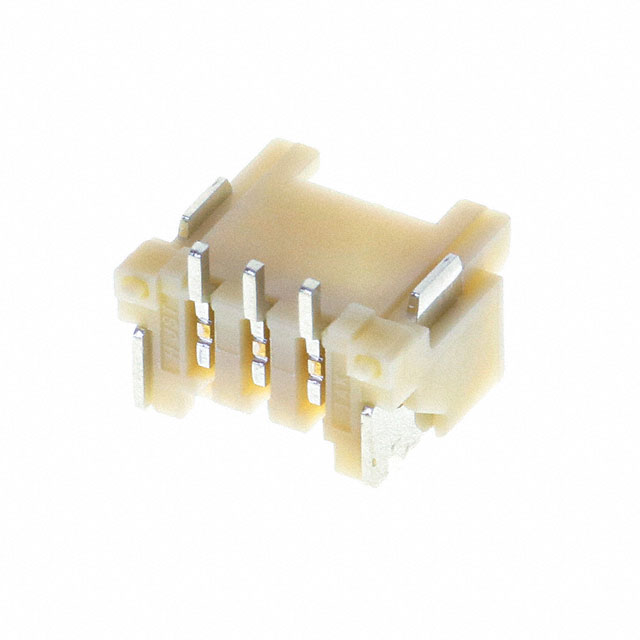

 Keystone Electronics | Board Guide | Surface Mount | 3 | Header | 1 | Latch Holder | Board Cable/Wire | Copper Alloy | 250 V | 0.28 in | Solder | Tin | Square | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Tin | All | 0.079 in | Natural | Male Pin | 3 A | Shrouded - 4 Wall | ||||||||||||||||||||||||||||||
Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 9.9 mm | 9.9 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.65 mm | Snap Dome | 0.012 A | 220 gf | Top Actuated | |||||||||||||||||||||||||||||||||||||
Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 8.4 mm | 8.4 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.8 mm | Snap Dome | 0.012 A | 400 gf | Top Actuated | |||||||||||||||||||||||||||||||||||||
Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 8.4 mm | 8.4 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.55 mm | Snap Dome | 0.012 A | 280 gf | Top Actuated | |||||||||||||||||||||||||||||||||||||
Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 7 mm | 7 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.55 mm | Snap Dome | 0.012 A | 340 gf | Top Actuated | |||||||||||||||||||||||||||||||||||||
Keystone Electronics | Off-Mom | Flex Membrane | Non-Illuminated | SPST-NO | 8.4 mm | 8.4 mm | -40 °C | 105 °C | Surface Mount | SMD (SMT) Tab | 0.65 mm | Snap Dome | 0.012 A | 220 gf | Top Actuated |
