3212 Series

Catalog

CONN RING CIRC 4/0AWG #5/16

Part	Terminal Type	Thickness	Thickness	Mounting Type	Termination	Length - Overall [x]	Length - Overall	Wire Gauge	Stud/Tab Size	Insulation	Contact Material	Contact Finish	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Length - Overall [x]

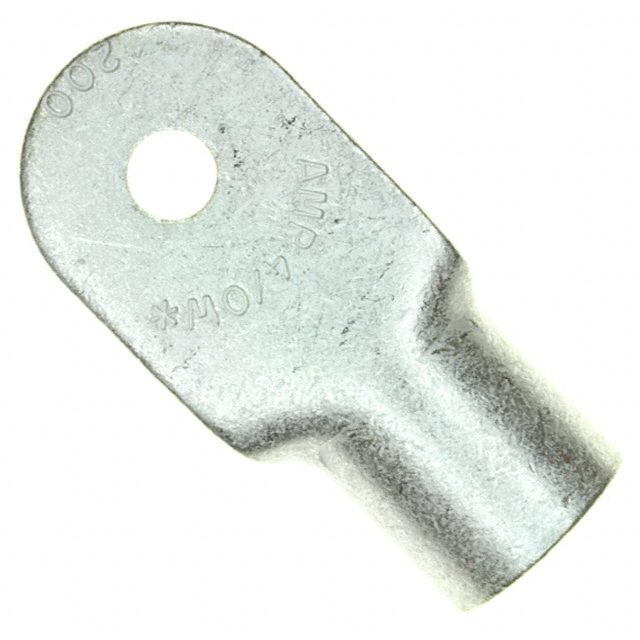

TE Connectivity Raychem Cable Protection 321271	Circular	2.59 mm	0.102 in	Free Hanging (In-Line)	Crimp	2.537 "	64.44 mm	4 aught AWG	0.3125 Stud	Non-Insulated	Copper	Tin	Serrated Termination

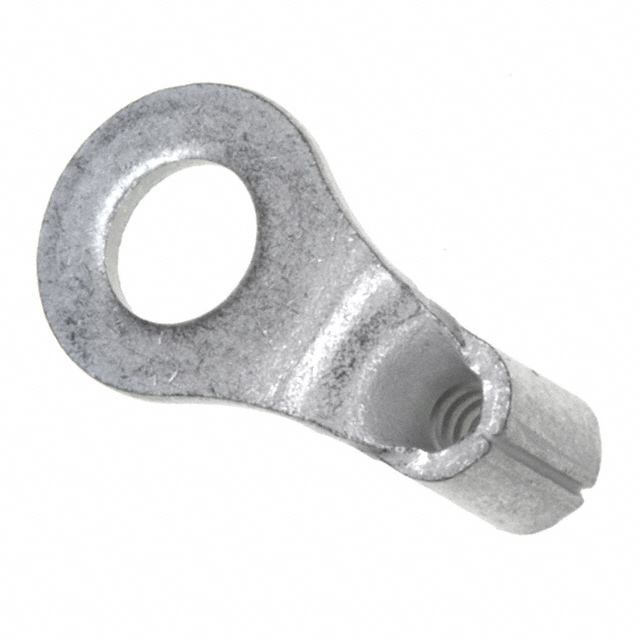

TE Connectivity Raychem Cable Protection 321262	Circular	0.79 mm	0.031 in	Free Hanging (In-Line) Right Angle	Crimp				6 Stud	Non-Insulated	Copper	Tin	Brazed Seam Serrated Termination	7.14 mm	0.281 in	22 AWG	16 AWG
TE Connectivity Raychem Cable Protection 321253	Circular	1.45 mm	0.057 in	Free Hanging (In-Line)	Crimp Flag			2 AWG		Non-Insulated	Copper	Tin	Brazed Seam	18.11 mm	0.713 "			3/8 Stud

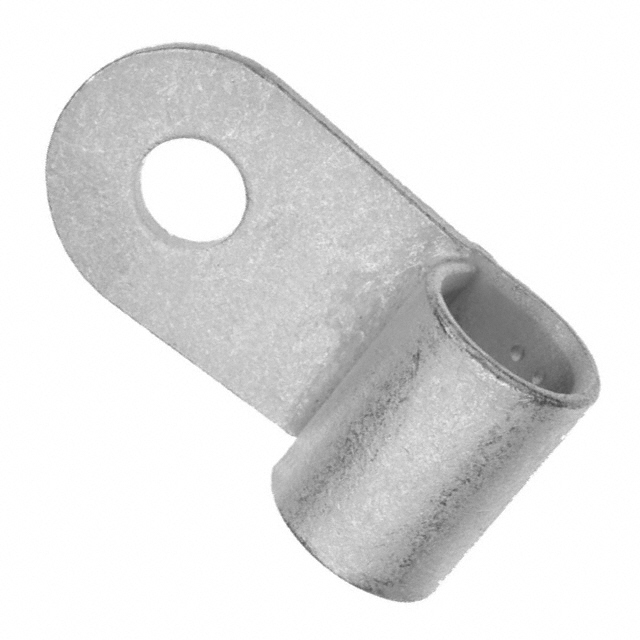

TE Connectivity Raychem Cable Protection 321201	Circular	1.45 mm	0.057 in	Free Hanging (In-Line) Right Angle	Crimp Flag	1.437 in		2 AWG	0.25 Stud	Non-Insulated	Copper	Tin	Brazed Seam Serrated Termination	18.11 mm	0.713 "				36.5 mm
TE Connectivity Raychem Cable Protection 321275	Circular	1.22 mm	0.048 in	Free Hanging (In-Line) Right Angle	Crimp Flag	1.048 in		4 AWG	0.25 Stud	Non-Insulated	Copper	Tin	Brazed Seam Serrated Termination	13.87 mm	0.546 in				26.62 mm
