SLW14 Series

Catalog

CONN CIC VERT 14POS 1MM PCB

Part	Housing Color	Mating Cycles	Actuator Color	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	FFC, FCB Thickness	Housing Material	Flat Flex Type	Cable End Type	Termination	Contact Material	Pitch	Pitch	Locking Feature	Actuator Material	Contact Finish	Number of Positions	Voltage Rating	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) SLW14S-5A7LF	Black	20	Black	Contacts Vertical - 1 Sided	-55 C	85 °C	UL94 V-0	Through Hole	0.3 mm	Glass Filled Nylon Polyamide (PA)	CIC	Tapered	Kinked Pin	Phosphor Bronze	1 mm	0.039 in	Slide Lock	Glass Filled Nylon Polyamide (PA)	Tin	14	100 V	0.217 in	5.5 mm

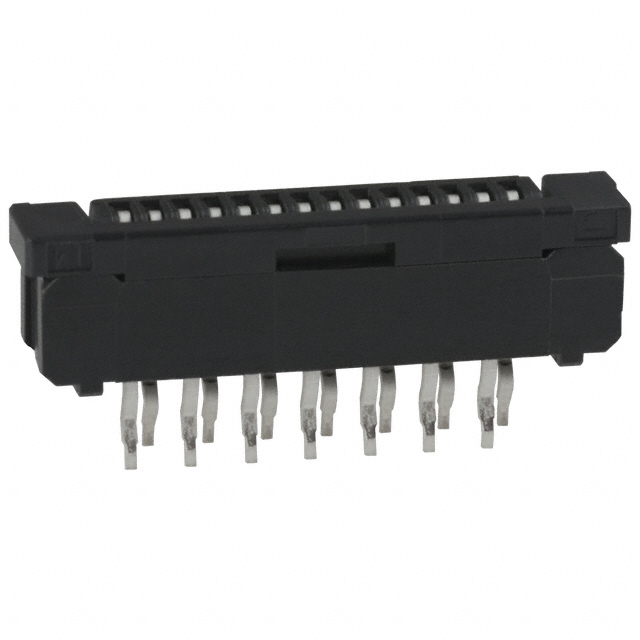

Amphenol ICC (FCI) SLW14S-1C7LF	Black	20		Contacts Vertical - 1 Sided	-55 C	85 °C	UL94 V-0	Through Hole	0.33 mm	Glass Filled Nylon Polyamide (PA)	FFC FPC		Kinked Pin	Phosphor Bronze	1 mm	0.039 in	Slide Lock	Glass Filled Nylon Polyamide (PA)	Tin	14	100 V	0.217 in	5.5 mm
