FKC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 5 POS 5MM PITCH PLUG 24-12AWG SPRING

Part	Insulation Height [custom]	Insulation Height [custom]	Wire Strip Length	Material Flammability Rating	Housing Material	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - UL	Color	Features	Number of Levels	Pitch	Pitch	Mounting Type	Number of Positions	Type	Current - IEC	Positions Per Level	Contact Mating Finish	Plug Wire Entry	Current - UL	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level [custom]
Phoenix Contact 1947081	0.591 in	15 mm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Screwless - Push-In Spring	2.5 mm²	0.2 mm²	300 V	Green	Latch Lock Retention Latches (Non-Wire Side)	1	0.197 in	5 mm	Free Hanging (In-Line)	5	Plug Female Sockets	12 A	5	Tin	180 °	10 A	630 V	12 AWG	26 AWG
Phoenix Contact 1910636						Push-In Spring Screwless - Leg Spring	2.5 mm²	0.2 mm²	300 V	Green	Mating Flange Retention Latches (Non-Wire Side)	1	0.197 in	5 mm	Free Hanging (In-Line)	13	Plug Female Sockets	12 A	13	Tin	180 °	10 A	630 V	12 AWG	26 AWG

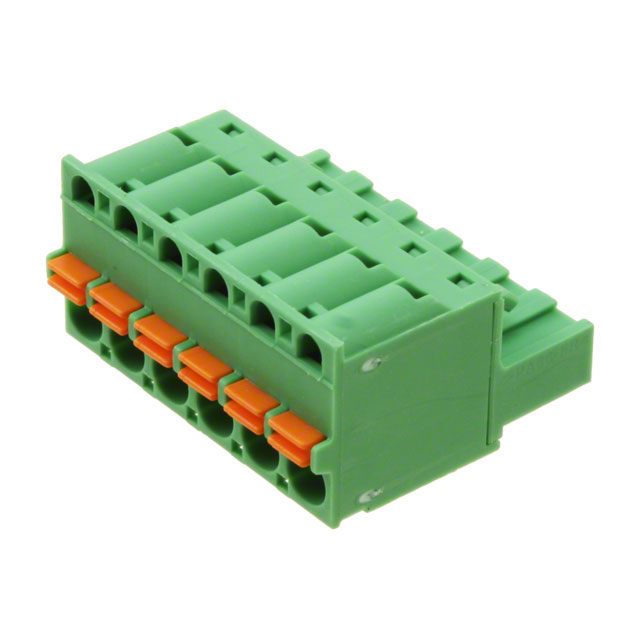

Phoenix Contact 1910393	0.591 in	15 mm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	2.5 mm²	0.2 mm²	300 V	Green		1	0.197 in	5 mm	Free Hanging (In-Line)	6	Plug Female Sockets	12 A	6	Tin	180 °	10 A	630 V	12 AWG	26 AWG	2.5 mm˛	0.2 mm˛
Phoenix Contact 1925744						Screwless - Push-In Spring	2.5 mm²	0.2 mm²	300 V	Green	Latch Lock Retention Latches (Non-Wire Side)	1	0.2 in	5.08 mm	Free Hanging (In-Line)	7	Plug Female Sockets	12 A		Tin	180 °	10 A	630 V	12 AWG	26 AWG			7
Phoenix Contact 1910487	0.591 in	15 mm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	2.5 mm²	0.2 mm²	300 V	Green		1	0.197 in	5 mm	Free Hanging (In-Line)	15	Plug Female Sockets	12 A	15	Tin	180 °	10 A	630 V	12 AWG	26 AWG
Phoenix Contact 1942316						Screwless - Push-In Spring	2.5 mm²	0.2 mm²	300 V	Green	Mating Flange Retention Latches (Non-Wire Side)	1	0.197 in	5 mm	Free Hanging (In-Line)	7	Plug Female Sockets	16 A		Tin	180 °	16 A	630 V	12 AWG	26 AWG			7

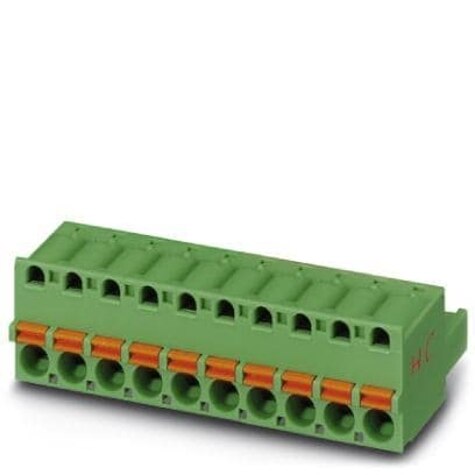

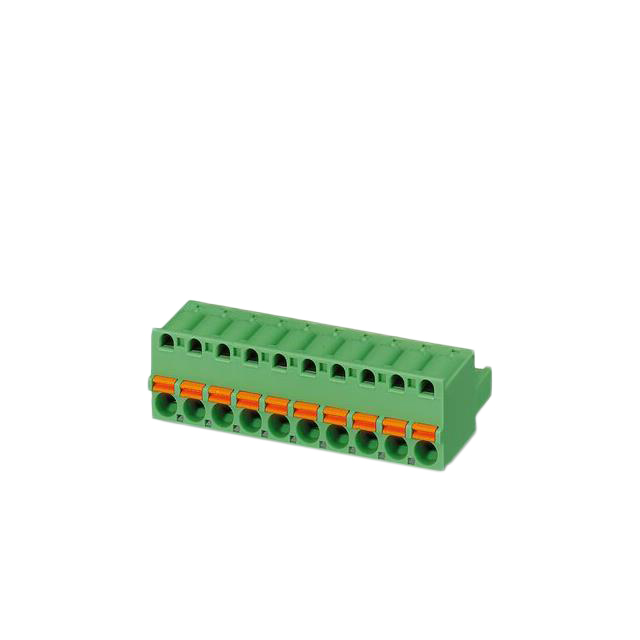

Phoenix Contact 1717123						Push-In Spring Screwless - Leg Spring	2.5 mm²	0.2 mm²				1	0.2 in	5.08 mm	Free Hanging (In-Line)		Plug Female Sockets	12 A	3	Tin	180 °		250 V	12 AWG	26 AWG
Phoenix Contact 1704535	0.591 in	15 mm	10 mm			Push-In Spring Screwless - Leg Spring				Green	Positions Stamped Retention Latches (Non-Wire Side)	1	0.197 in	5 mm	Free Hanging (In-Line)	2	Plug Female Sockets	12 A	2	Tin	180 °

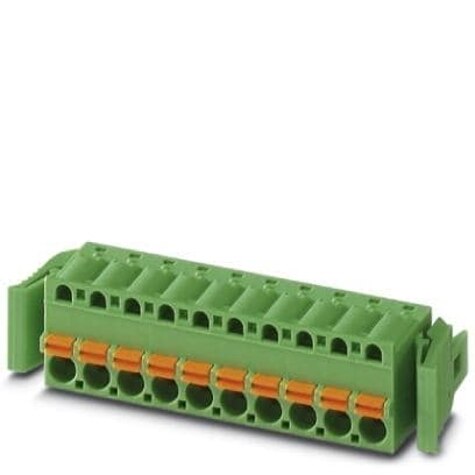

Phoenix Contact 1925825	0.591 in	15 mm	10 mm	UL94 V-0	Polyamide (PA) Nylon	Screwless - Push-In Spring	2.5 mm²	0.2 mm²	300 V	Green	Latch Lock Retention Latches (Non-Wire Side)	1	0.2 in	5.08 mm	Free Hanging (In-Line)	15	Plug Female Sockets	12 A	15	Tin	180 °	10 A	630 V	12 AWG	26 AWG
Phoenix Contact 1945672						Push-In Spring Screwless - Leg Spring	2.5 mm²	0.2 mm²	300 V	Green	Mating Flange Retention Latches (Non-Wire Side)	1	0.2 in	5.08 mm	Free Hanging (In-Line)	5	Plug Female Sockets	12 A	5	Gold	180 °	10 A	630 V	12 AWG	26 AWG
