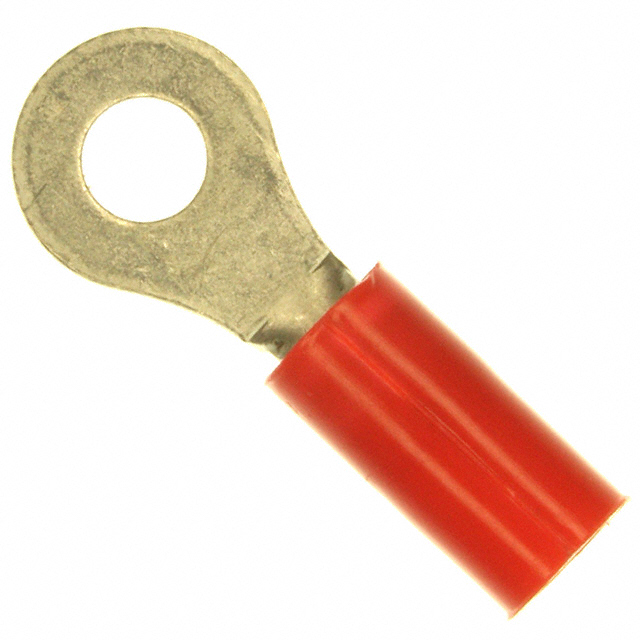

32950 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
PG R 22-16 COMM 22-18 MIL 6 ROHS COMPLIANT: YES
| Part | Length - Overall | Length - Overall [x] | Material - Insulation | Contact Finish | Features | Color | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Stud/Tab Size | Insulation | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Thickness | Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 21.74 mm | 0.856 " | Poly-Vinyl Chloride (PVC) | Tin | Serrated Termination | Red | 22 AWG | 16 AWG | Copper | 6 Stud | Insulated | Crimp | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | 7.92 mm | 0.312 in | Circular | 0.031 in | 0.79 mm | Free Hanging (In-Line) |
