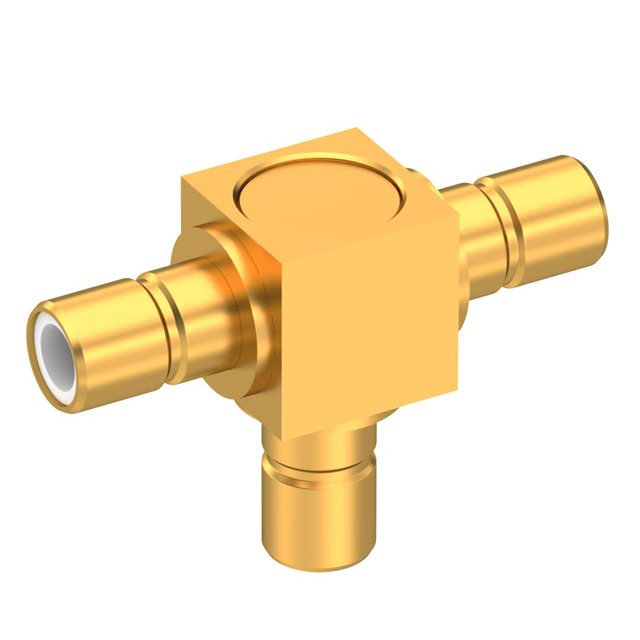

5207-1501 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
COAX ADAPT SMB TO SMB, DUAL
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Finish | Mating Cycles | Frequency - Max [Max] | Conversion Type | Impedance | Adapter Type | Center Gender | Convert To (Adapter End) | Fastening Type | Fastening Type | Adapter Series | Mounting Type | Center Contact Plating | Convert From (Adapter End) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Brass | Gold | 500 | 4 GHz | Same Series | 50 Ohms | Jack to Jack | Male to Male | SMB Jack Male Pin (2) | Snap-On | Snap-On | SMB to SMB Dual | Free Hanging (In-Line) | Gold | Male Pin SMB Jack | T-Shape |
