044300 Series

Manufacturer: Molex

Catalog

CONN HOUSING PL 14 POS 3MM CRIMP ST PANEL MOUNT BLACK MICRO-FIT 3.0 BMI™ BAG

Part	Pitch [x]	Pitch [x]	Contact Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Material	Row Spacing [x]	Row Spacing [x]	Color	Note	Connector Type	Number of Positions	Contact Type	Number of Positions

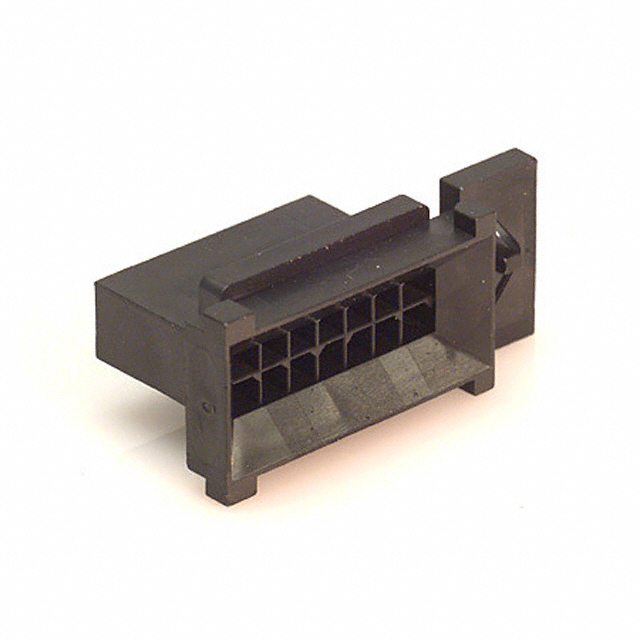

Molex 0443001400	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug	14	Male Pin

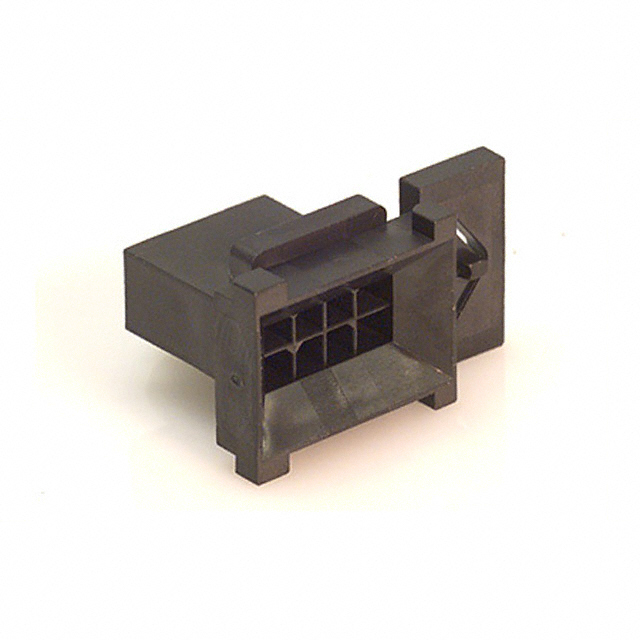

Molex 0443000800	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug	8	Male Pin

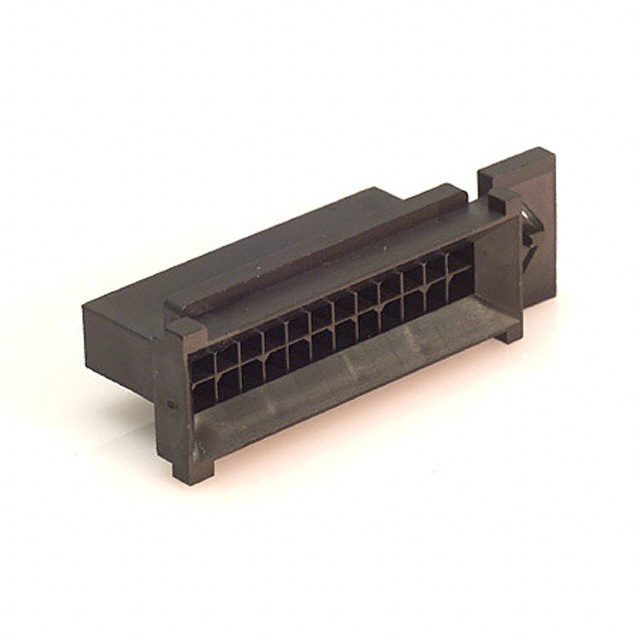

Molex 0443002400	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug	24	Male Pin

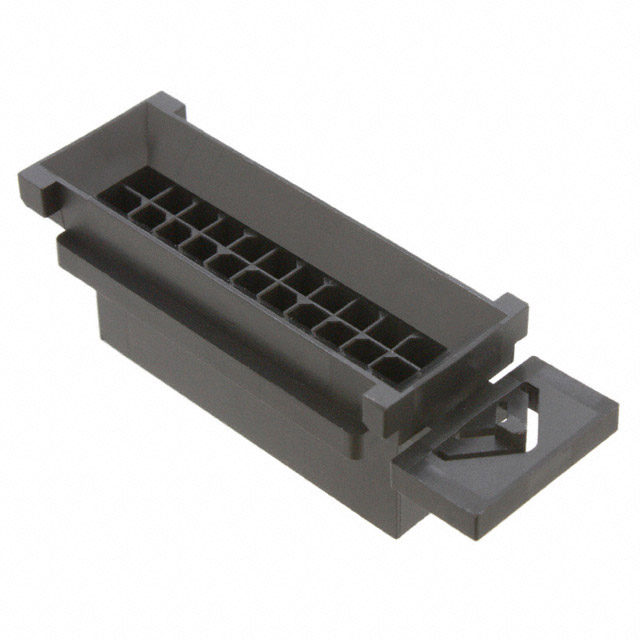

Molex 0443002200	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug	22 positions	Male Pin

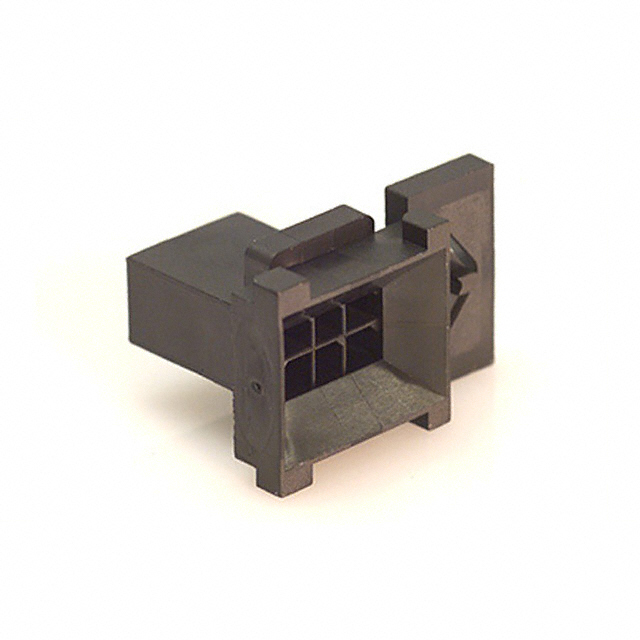

Molex 0443000600	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug	6	Male Pin

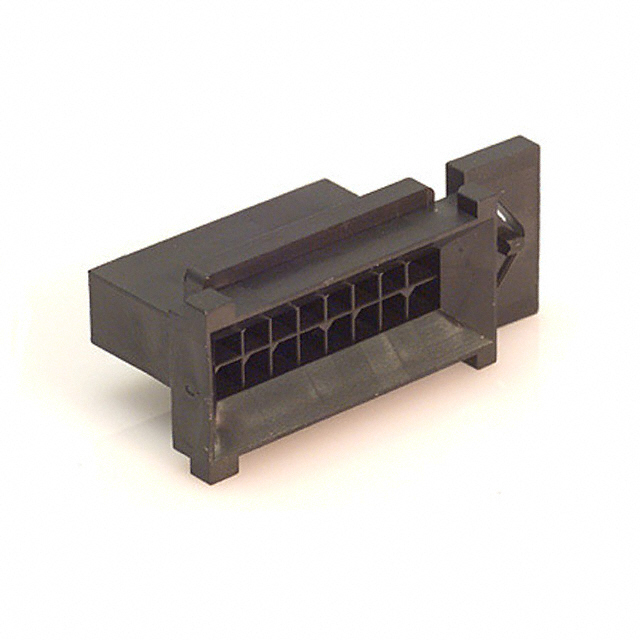

Molex 0443001600	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug		Male Pin	16

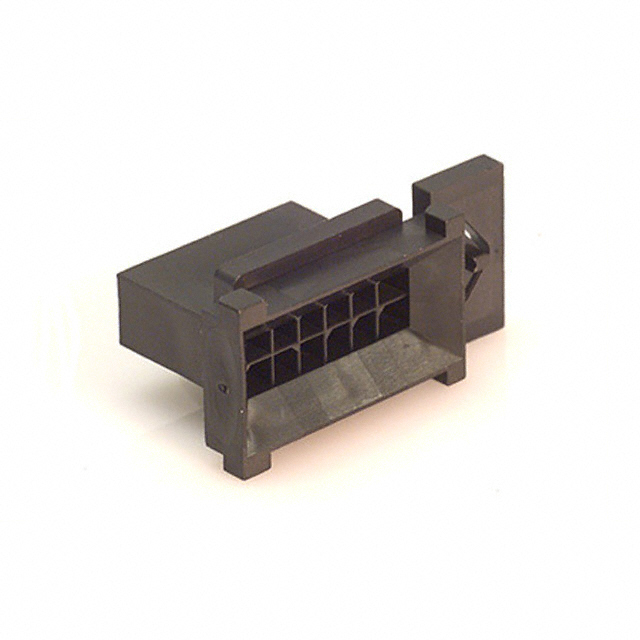

Molex 0443001200	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Blind Mating	Polybutylene Terephthalate (PBT) Polyester	0.118 in	3 mm	Black	Contacts Not Included	Plug	12	Male Pin
Molex 0443001011	3 mm	0.118 in	Crimp	2	-40 °C	105 ░C	Glow Wire Compliant	Nylon Polyamide (PA)	0.118 in	3 mm	Black		Plug	10	Male Pin
