MB6010 Series

Catalog

FAN AXIAL 60X10.2MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Voltage - Rated	Weight [custom]	Weight [custom]	Fan Type	Termination	Width [y]	Noise	Approval Agency	Static Pressure	Static Pressure	Features	Size / Dimension [z]	Size / Dimension [x]	RPM	Air Flow	Air Flow	Current Rating (Amps)	Static Pressure
Mechatronics Fan Group MB6010M12B-RSR	Polybutylene Terephthalate (PBT)	13.8 VDC	6 VDC	Ball	12 VDC	0.059 lb	26.76 g	Tubeaxial	2 Wire Leads	10.2 mm	22.5 dB	cUL UL	14.9 Pa	0.06 in H2O	Thermal Overload Protector (TOP)	60 mm	60 mm	3200 RPM
Mechatronics Fan Group MB6010L05B-RS	Polybutylene Terephthalate (PBT)			Ball	5 V	0.059 lb	26.76 g	Tubeaxial	2 Wire Leads	10 mm		cUL UL	10 Pa	0.04 in H2O	Thermal Overload Protector (TOP)	60 mm	60 mm		9.3 CFM	0.26 m³/min

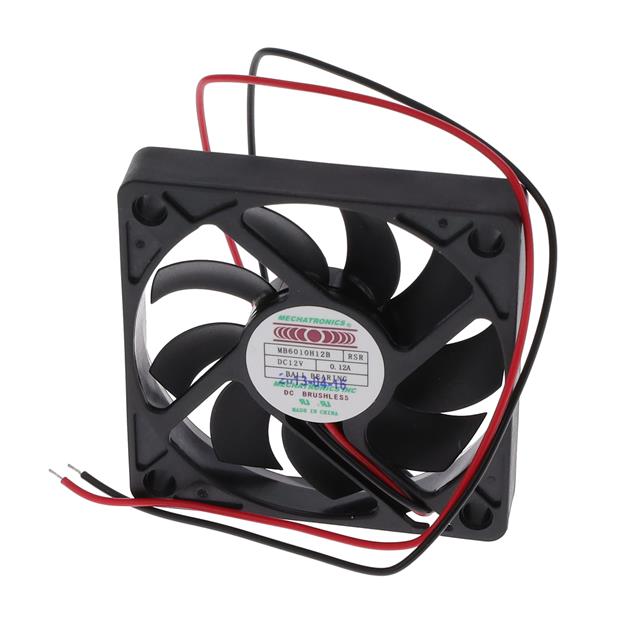

Mechatronics Fan Group MB6010H12B-RSR	Polybutylene Terephthalate (PBT)	13.8 VDC	6 VDC	Ball	12 VDC	0.059 lb	26.76 g	Tubeaxial	2 Wire Leads	10.2 mm	28 dB	cUL UL	19.9 Pa		Thermal Overload Protector (TOP)	60 mm	60 mm	3900 RPM	13.5 CFM	0.378 m³/min	120 mA	0.08 in H2O

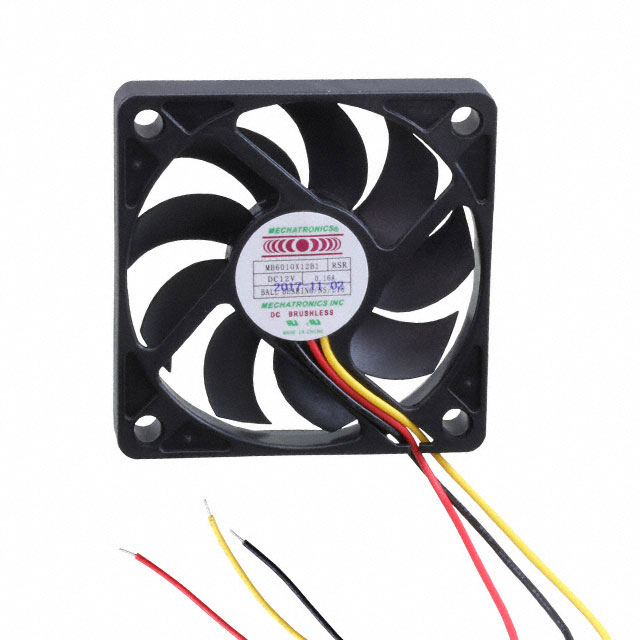

Mechatronics Fan Group MB6010X12B1-RSR-NS-L18	Polybutylene Terephthalate (PBT)	13.8 VDC	6 VDC	Ball	12 VDC	0.059 lb	26.76 g	Tubeaxial	3 Wire Leads	10.2 mm	35 dB	cUL UL	32.4 Pa		Speed Sensor (Tach) Thermal Overload Protector (TOP)	60 mm	60 mm	5300 RPM	18.7 CFM	0.524 mł/min		0.13 in H2O

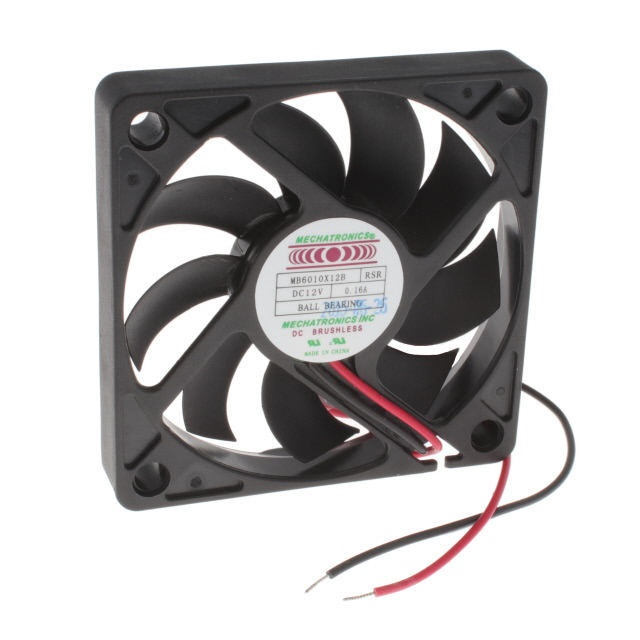

Mechatronics Fan Group MB6010X12B-RSR	Polybutylene Terephthalate (PBT)	13.8 VDC	6 VDC	Ball	12 VDC	0.059 lb	26.76 g	Tubeaxial	2 Wire Leads	10.2 mm	35 dB	cUL UL	32.4 Pa		Thermal Overload Protector (TOP)	60 mm	60 mm	5300 RPM	18.7 CFM	0.524 mł/min		0.13 in H2O
