NPPN071 Series

Catalog

CONN HDR 7POS 0.079 GOLD SMD

Part	Contact Material	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Connector Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions Loaded	Material Flammability Rating	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height

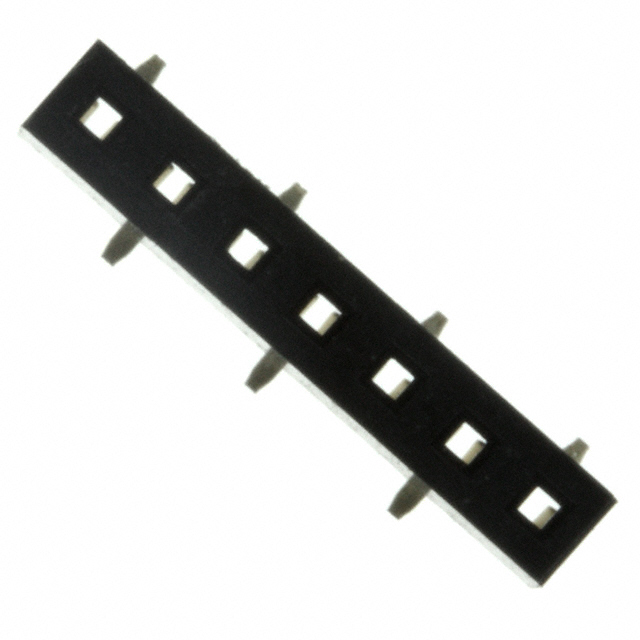

Sullins Connector Solutions NPPN071BFLC-RC	Phosphor Bronze	Flash	Square	Nylon 6T Polyamide (PA6T)	Header	150 VDC	0.079 "	2 mm	2 A	All	UL94 V-0	Solder	1	-40 C	105 ░C	Black	Flash	Push-Pull	7	0.181 in	4.6 mm	Gold	Surface Mount	Gold	Female Socket

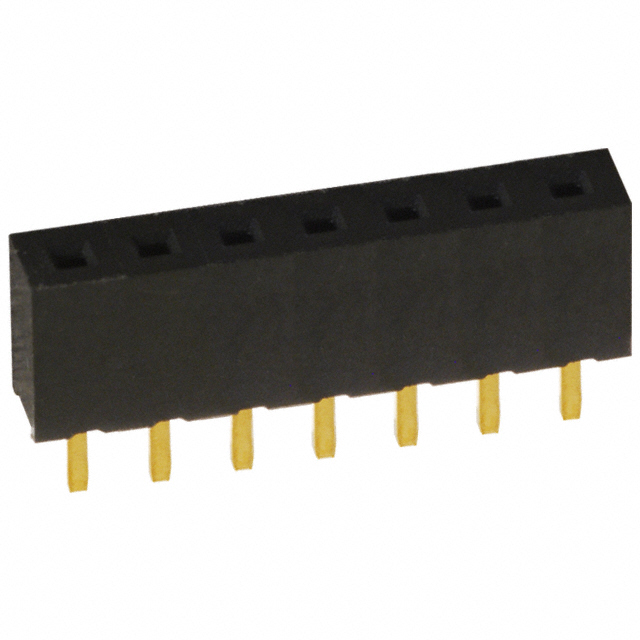

Sullins Connector Solutions NPPN071BFCN-RC	Phosphor Bronze	Flash	Square	Nylon 6T Polyamide (PA6T)	Header		0.079 "	2 mm	2 A	All	UL94 V-0	Solder	1	-40 C	105 ░C	Black	Flash	Push-Pull	7			Gold	Through Hole	Gold	Female Socket	2.4 mm	0.094 in	4.4 mm	0.173 in
