L16PLT10 Series

Manufacturer: E-Switch

Catalog

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS ILLUMINATED WHT 6VAC/DC

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Lamp Color	Ratings	Lens Style	Type	Current	Panel Cutout Shape	Lens Size [x]	Lens Size [y]	Lens Color	Ingress Protection	Lens Transparency
E-Switch L16PLT10AWHT	16 mm	0.63 in	6 V	White	AC/DC	Rectangle with Flat Top	Incandescent	200 mA	Round	24 mm	18 mm
E-Switch L16PLT10FREDRED	16 mm	0.63 in	110 V	Red	AC	Rectangle with Flat Top	Neon		Round	24 mm	18 mm

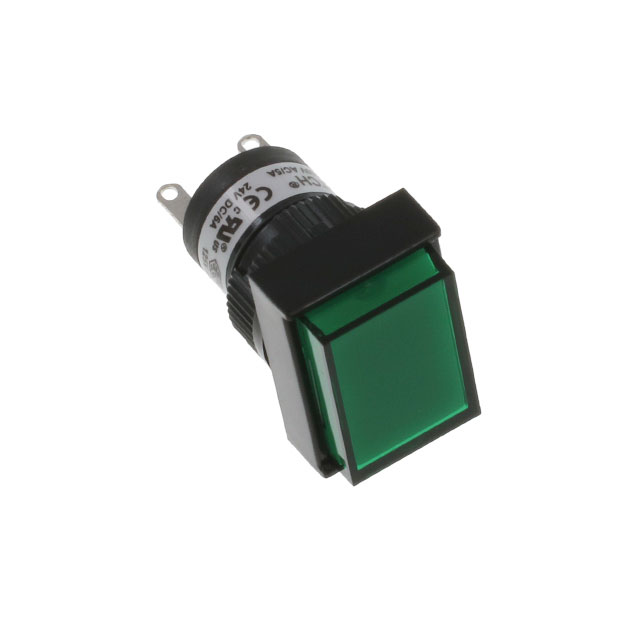

E-Switch L16PLT10CGRN	16 mm	0.63 in	28 V	Green	DC	Rectangle with Flat Top	Incandescent	40 mA	Round	24 mm	18 mm
E-Switch L16PLT10KREDRED	16 mm	0.63 in	24 V	Red	DC	Rectangle with Flat Top	LED		Round	24 mm	18 mm
E-Switch L16PLT10CRED	16 mm	0.63 in	28 V		AC/DC	Rectangle with Flat Top	Incandescent	40 mA	Round	24 mm	18 mm	Red	IP40
E-Switch L16PLT10NBLU	16 mm	0.63 in	14 V		AC/DC	Rectangle with Flat Top	Incandescent	40 mA	Round	24 mm	18 mm	Blue
E-Switch L16PLT10HGRNGRN	16 mm	0.63 in	6 V	Green	DC	Rectangle with Flat Top	LED		Round	24 mm	18 mm
E-Switch L16PLT10BGRN	16 mm	0.63 in	14 V		AC/DC	Rectangle with Flat Top	Incandescent	80 mA	Round	24 mm	18 mm	Green
E-Switch L16PLT10KGRNGRN	16 mm	0.63 in	24 V	Green	DC	Rectangle with Flat Top	LED		Round	24 mm	18 mm	Green		Clear
E-Switch L16PLT10MGRN	16 mm	0.63 in	6 V	Green	AC/DC	Rectangle with Flat Top	Incandescent	40 mA	Round	24 mm	18 mm
