0229004 Series

FUSE 125V SB 2AG Pb-FREE 4A

Catalog

FUSE 125V SB 2AG Pb-FREE 4A

Part	Melting I²t	Current Rating (Amps)	Package / Case [x]	Package / Case	Package / Case [y]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Fuse Type	Approval Agency	Breaking Capacity @ Rated Voltage	Response Time
LITTELFUSE 0229004.MXSP	148	4 A	5 mm	2AG	15 mm	125 VDC	-55 C	125 °C	Requires Holder	125 V	Cartridge Glass	CE CSA PSE UL	400 A	Slow Blow
LITTELFUSE 0229004.VXP	148	4 A	5 mm	2AG	15 mm	125 VDC	-55 C	125 °C	Requires Holder	125 V	Cartridge Glass	CE CSA PSE UL	400 A	Slow Blow
LITTELFUSE 0229004.HXSP	148	4 A	5 mm	2AG	15 mm	125 VDC	-55 C	125 °C	Requires Holder	125 V	Cartridge Glass	CE CSA PSE UL	400 A	Slow Blow

Catalog

FUSE 125V SB 2AG Pb-FREE 4A

Description

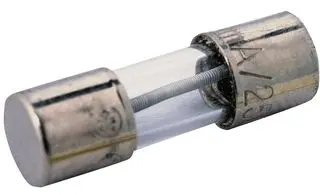

The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
