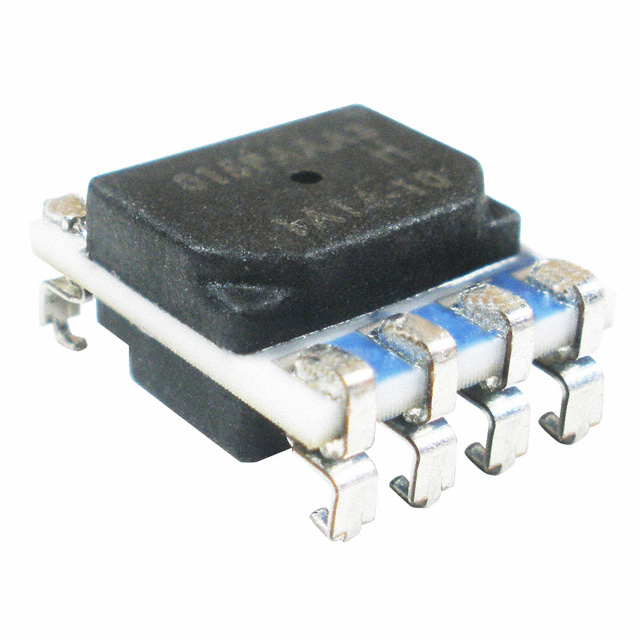

SSCMNNN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 30PSIA 12BIT 8SMT
| Part | Package / Case | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Port Style | Output Type | Supplier Device Package | Mounting Type | Output | Applications | Features | Operating Pressure | Operating Pressure | Maximum Pressure [Max] | Maximum Pressure [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Accuracy | Output [Max] | Output [Min] | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 8-SMD J-Lead | SMD (SMT) Tab | 85 °C | -40 C | No Port | SPI | 8-SMT | Surface Mount | 12 b | Board Mount | Amplified Output Temperature Compensated | 30 PSI | 206.84 kPa | 413.69 kPa | 60 PSI | 3.6 V | 3 V | 0.25 % | ||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | 8-SMD J-Lead | SMD (SMT) Tab | 85 °C | -40 C | No Port | Analog Voltage | 8-SMT | Surface Mount | Board Mount | Amplified Output Temperature Compensated | 14.5 PSI | 1 bar | 5.25 V | 4.75 V | 0.25 % | 4.5 V | 0.5 V | 29.01 PSI | 200 kPa | |||
Honeywell Sensing and Productivity Solutions | 8-SMD J-Lead | SMD (SMT) Tab | 85 °C | -40 C | No Port | I2C | 8-SMT | Surface Mount | 12 b | Board Mount | Amplified Output Temperature Compensated | 15 PSI | 103.42 kPa | 206.84 kPa | 30 PSI | 3.6 V | 3 V | 0.25 % | ||||
 Honeywell Sensing and Productivity Solutions | 8-SMD J-Lead | SMD (SMT) Tab | 85 °C | -40 C | No Port | I2C | 8-SMT | Surface Mount | 12 b | Board Mount | Amplified Output Temperature Compensated | 30 PSI | 206.84 kPa | 413.69 kPa | 60 PSI | 3.6 V | 3 V | 0.25 % |
