1931 Series

Catalog

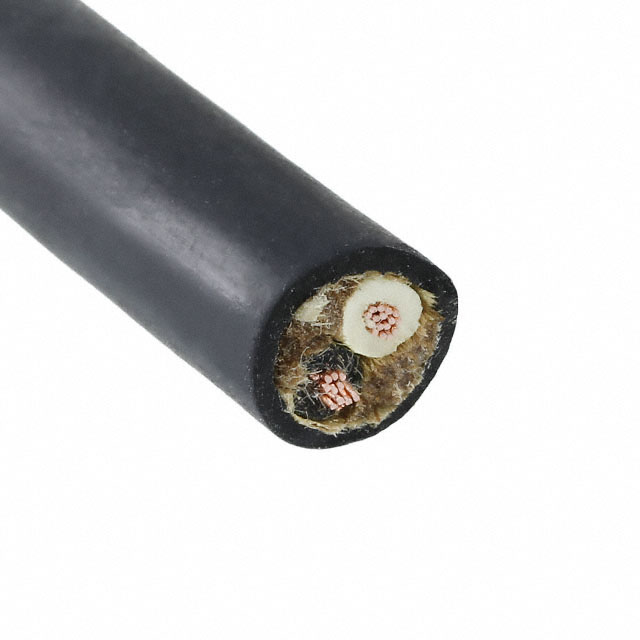

MULTICONDUCTOR CABLE, PORTABLE CORD, UNSHIELDED, 2 CONDUCTOR, 18 AWG, 0.82 MM², 250 FT, 76.2 M

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Cable Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Voltage	Length [x]	Length [x]	Jacket Color
ALPHA WIRE 1931 BK003	90 °C	-40 C	2	41	34	3.05 m 15.24 m 76.2 m	10 ft 50 ft 250 ft	Polyethylene (PE)	0.864 mm	0.034 in	Copper Bare	Multi-Conductor	18 AWG	0.236 "	5.99 mm	Rubber	300 VDC	100 ft	30.5 m	Black
