XT40 Series

Manufacturer: PULS, LP

Catalog

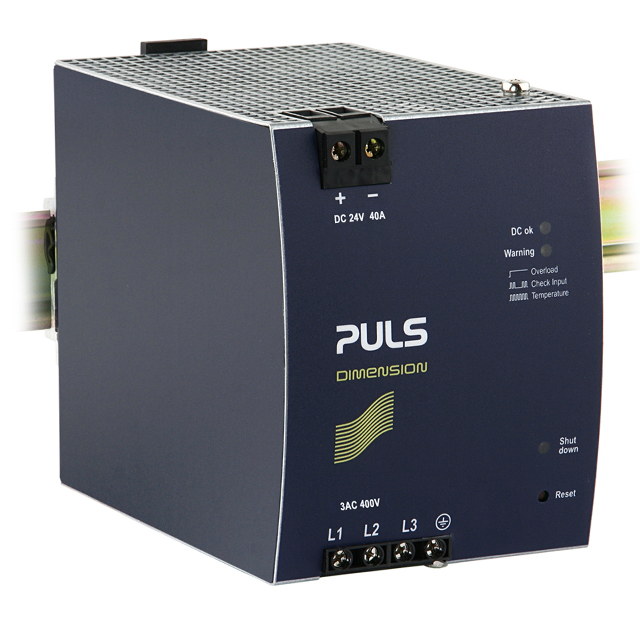

AC/DC DIN RAIL SUPPLY 24V 960W

Part	Efficiency	Approval Agency	Power (Watts)	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Current - Output (Max) [Max]	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Voltage - Output 1 [custom]
PULS, LP XT40.241	95.5 %	EAC IEC UL	960 W	1	IP20 PFC	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	40 A	AC	300 VAC	460 VAC	Industrial ITE (Commercial)	500 V	24 V
PULS, LP XT40.362	95.5 %	EAC IEC UL	960 W	1	IP20	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	26 A	AC	360 VAC	552 VAC	ITE (Commercial)	3000 V		36 V
PULS, LP XT40.361	95.5 %	EAC IEC UL	958 W	1	IP20 PFC	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	26.6 A	AC	300 VAC	460 VAC	Industrial ITE (Commercial)	500 V		36 V
PULS, LP XT40.481	96 %	EAC IEC UL	960 W	1	IP20	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	20 A	AC	300 VAC	460 VAC	ITE (Commercial)	3000 V	48 V
PULS, LP XT40.722	95.5 %	EAC IEC UL	960 W	1	IP20	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	13 A	AC	360 VAC	552 VAC	ITE (Commercial)	3000 V	72 V
PULS, LP XT40.242	95.5 %	EAC IEC UL	960 W	1	IP20 PFC	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	40 A	AC	360 VAC	552 VAC	Industrial ITE (Commercial)	500 V	24 V
PULS, LP XT40.482	96 %	EAC IEC UL	960 W	1	IP20	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	20 A	AC	360 VAC 432 VAC	528 VAC 552 VAC	ITE (Commercial)	3000 V	48 V
PULS, LP XT40.721	95.5 %	EAC IEC UL	960 W	1	IP20	70 °C	-25 °C	96 mm	124 mm	4.88 in	157 mm	3.78 in	6.18 in	508 60950-1 61010-2-201	13 A	AC	300 VAC	460 VAC	ITE (Commercial)	3000 V	72 V
