ALCOSWITCH AVH25 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH PUSHBUTTON SPDT 16A 125V
| Part | Electrical Life | Mechanical Life | Illumination Type, Color | Voltage Rating - AC | Illumination Voltage (Nominal) | Type | Termination Style | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mounting Type | Actuator Marking | Current Rating (Amps) | Switch Function | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50000 Cycles | 1000000 Cycles | LED Yellow | 125 V | 12 VDC | Anti-Vandal Illuminated | Quick Connect | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | No Marking | 16 A | On-Mom | Silver | 25.2 mm | Button Flush Round |
 TE Connectivity AMP Connectors | 50000 Cycles | 500000 Cycles | Green/Red LED | 125 V | 24 V | Anti-Vandal Illuminated | Quick Connect | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | Power Symbol | 16 A | On-On | Silver | 25.2 mm | Button Flush Round |

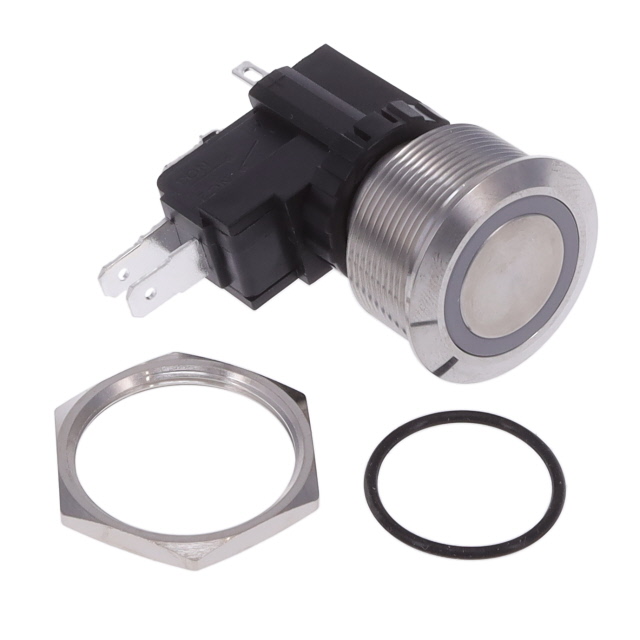

 TE Connectivity AMP Connectors | 50000 Cycles | 500000 Cycles | LED Yellow | 125 V | 24 V | Anti-Vandal Illuminated | Quick Connect | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | No Marking | 16 A | On-On | Silver | 25.2 mm | Button Flush Round |
TE Connectivity AMP Connectors | 10000 Cycles | 1000000 Cycles | LED White | 125 V | 12 VDC | Anti-Vandal Illuminated | Quick Connect - 0.250" (6.3mm) | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | Power Symbol | 26 A | On-Mom | Silver | 25.2 mm | Button Flush Round |

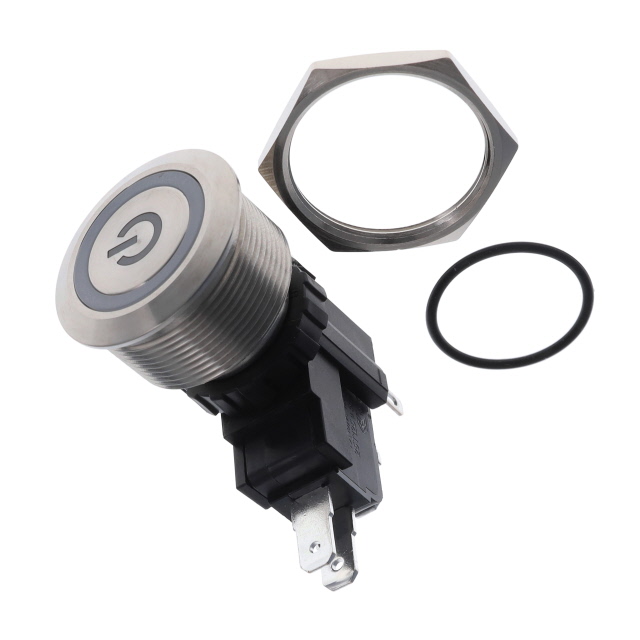

 TE Connectivity AMP Connectors | 50000 Cycles | 1000000 Cycles | Green/Red LED | 125 V | 24 V | Anti-Vandal Illuminated | Quick Connect | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | Power Symbol | 16 A | On-Mom | Silver | 25.2 mm | Button Flush Round |
 TE Connectivity AMP Connectors | 50000 Cycles | 500000 Cycles | Green/Red LED | 125 V | 24 V | Anti-Vandal Illuminated | Quick Connect | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | No Marking | 16 A | On-On | Silver | 25.2 mm | Button Flush Round |
 TE Connectivity AMP Connectors | 10000 Cycles | 1000000 Cycles | Green LED | 125 V | 24 V | Anti-Vandal Illuminated | Quick Connect - 0.250" (6.3mm) | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | No Marking | 26 A | On-Mom | Silver | 25.2 mm | Button Flush Round |
 TE Connectivity AMP Connectors | 50000 Cycles | 500000 Cycles | LED Red | 125 V | 12 VDC | Anti-Vandal Illuminated | Quick Connect | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | Power Symbol | 16 A | On-On | Silver | 25.2 mm | Button Flush Round |

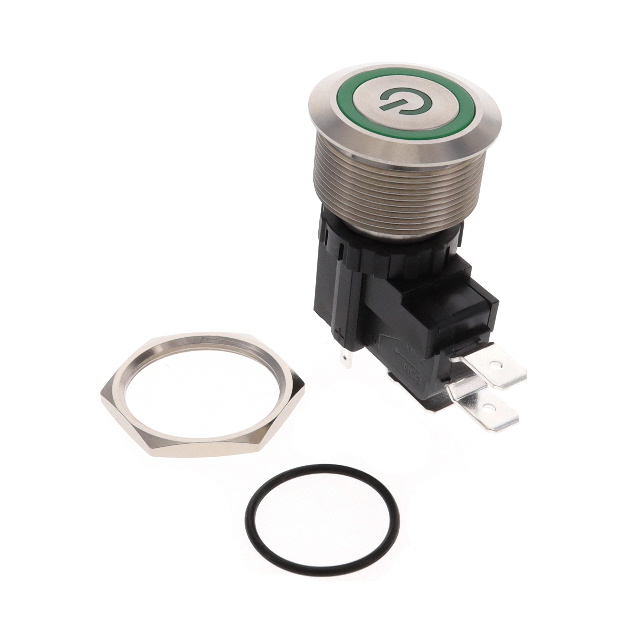

 TE Connectivity AMP Connectors | 10000 Cycles | 1000000 Cycles | Green LED | 125 V | 12 VDC | Anti-Vandal Illuminated | Quick Connect - 0.250" (6.3mm) | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | Power Symbol | 26 A | On-Mom | Silver | 25.2 mm | Button Flush Round |

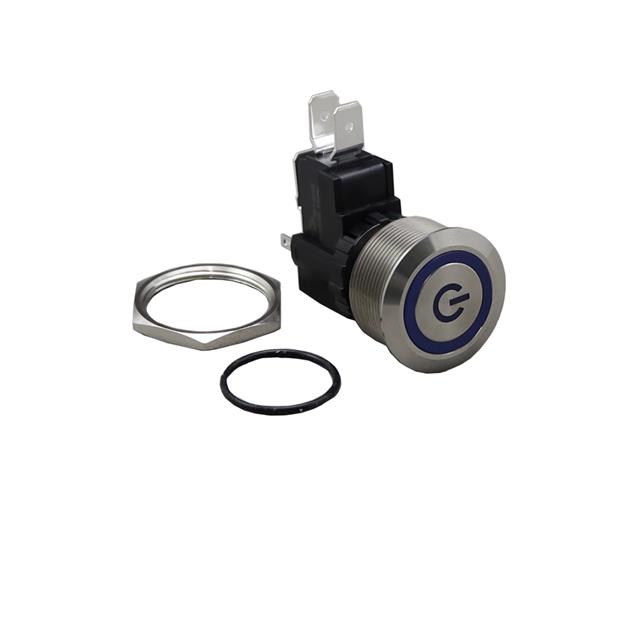

 TE Connectivity AMP Connectors | 10000 Cycles | 1000000 Cycles | Blue LED | 125 V | 24 V | Anti-Vandal Illuminated | Quick Connect - 0.250" (6.3mm) | SPDT | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Panel Mount Front | Power Symbol | 26 A | On-Mom | Silver | 25.2 mm | Button Flush Round |
