51415 Series

Catalog

CONN HEADER BLADE PWR 26POS PCB

Part	Connector Type	Mounting Type	Number of Positions Loaded	Termination	Material Flammability Rating	Number of Positions	Pitch [x]	Pitch [x]	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 51415-005LF	Header Male Pins and Blades	Through Hole Right Angle	All	Solder	UL94 V-0	26	2.54 mm	0.1 in	Mating Guide	Black	-20 C	105 ░C	Blade Power	2	24
Amphenol ICC (FCI) 51415-001	Header Male Pins and Blades	Board Edge Right Angle Through Hole	All	Solder	UL94 V-0	26	2.54 mm	0.1 in	Mating Guide	Black	-20 C	105 ░C	Blade Power	2	24	Gold or Gold GXT™	0.76 Ám	30 Áin

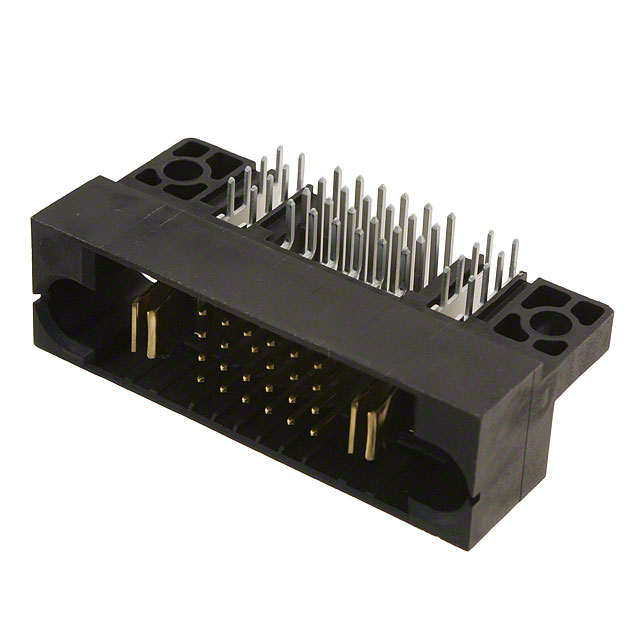

Amphenol ICC (FCI) 51415-001LF	Header Male Pins and Blades	Board Edge Right Angle Through Hole	All	Solder	UL94 V-0	26	2.54 mm	0.1 in	Mating Guide	Black	-20 C	105 ░C	Blade Power	2	24	Gold or Gold GXT™	0.76 Ám	30 Áin
Amphenol ICC (FCI) 51415-002LF	Header Male Pins and Blades	Through Hole Right Angle	All	Solder	UL94 V-0	26	2.54 mm	0.1 in	Mating Guide	Black	-20 C	105 ░C	Blade Power	2	24	Gold or Gold GXT™	0.76 Ám	30 Áin
Amphenol ICC (FCI) 51415-001AULF	Header Male Pins and Blades	Through Hole Right Angle	All	Solder	UL94 V-0	26	2.54 mm	0.1 in	Mating Guide				Blade Power	2	24	Gold or Gold GXT™	0.76 Ám	30 Áin
