1503 Series

Catalog

CONN BARRIER STRIP 3CIRC 0.375"

Part	Operating Temperature	Terminal Screw Material	Material Flammability Rating	Mounting Type	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Features	Bottom Termination	Barrier Type	Number of Circuits	Current Rating (Amps)	Terminal Block Type	Pitch	Pitch	Number of Wire Entries	Top Termination	Number of Rows [custom]	Terminal Screw Finish
Curtis Industries 1503-YSY	110 °C	Steel	UL94 V-0	Chassis Panel Through Hole	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Flange	PC Pin	2 Wall (Dual)	3	20 A	Barrier Block	9.53 mm	0.375 in	6	Screws	2
Curtis Industries 1503-3/4ST	110 °C		UL94 V-0	Chassis Panel	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Flange	Closed	2 Wall (Dual)	3	20 A	Barrier Block	9.53 mm	0.375 in	6	Screws with Solder Lugs Single	2	Tin
Curtis Industries 1503-ST	110 °C		UL94 V-0	Chassis Panel	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Flange	Closed	2 Wall (Dual)	3	20 A	Barrier Block	9.53 mm	0.375 in	6	Dual Screws with Solder Lugs	2	Tin

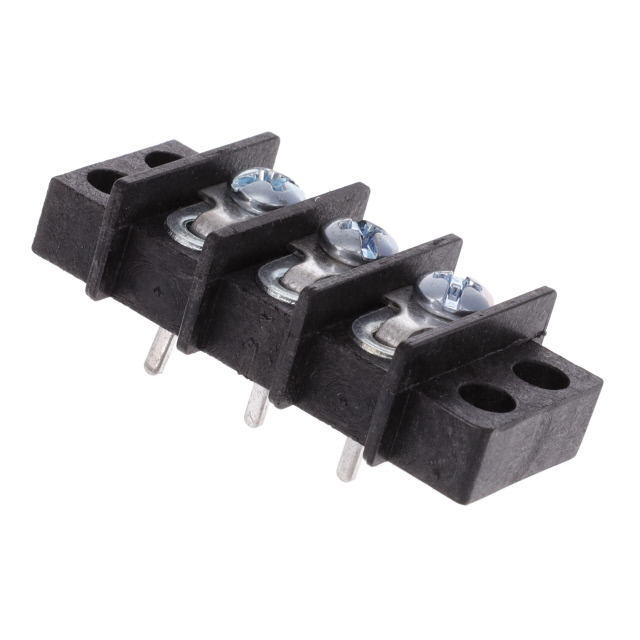

Curtis Industries 1503-Y	110 °C	Steel	UL94 V-0	Chassis Panel Through Hole	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Flange	PC Pin	2 Wall (Dual)	3	20 A	Barrier Block	9.53 mm	0.375 in	6	Screws	2
