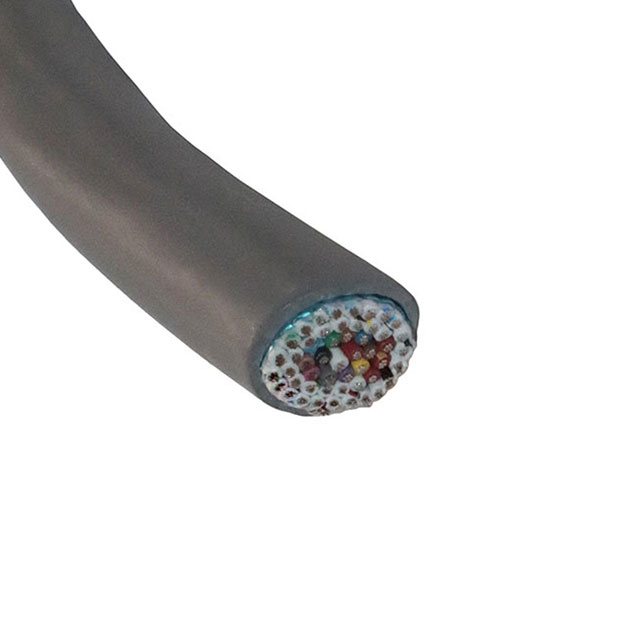

5470/50C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 50COND 20AWG SHLD
| Part | Shield Material | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Coverage | Number of Conductors | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket Color | Usage | Voltage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Cable Type | Features | Ratings | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | Poly-Vinyl Chloride (PVC) | 17.47 mm | 0.688 in | Poly-Vinyl Chloride (PVC) | 100 % | 50 | Foil | 28 | 7 | 1000 ft | 304.8 m | Slate | Communication Control | 300 V | Copper Tinned | 1.346 mm | 0.053 in | 20 AWG | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C |
ALPHA WIRE | Aluminum | Poly-Vinyl Chloride (PVC) | 17.47 mm | 0.688 in | Poly-Vinyl Chloride (PVC) | 100 % | 50 | Foil | 28 | 7 | Slate | Communication Control | 300 V | Copper Tinned | 1.346 mm | 0.053 in | 20 AWG | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C |
