FI-S4 Series

Catalog

CONN HEADER SMD R/A 4POS 1.25MM

Part	Insulation Color	Features	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Style	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Current Rating (Amps)	Voltage Rating	Connector Type	Contact Finish - Mating	Contact Shape	Number of Rows	Contact Finish - Post	Contact Material	Mounting Type	Material Flammability Rating	Fastening Type	Note	Insulation Material	Contact Termination	Pitch	Pitch	Color

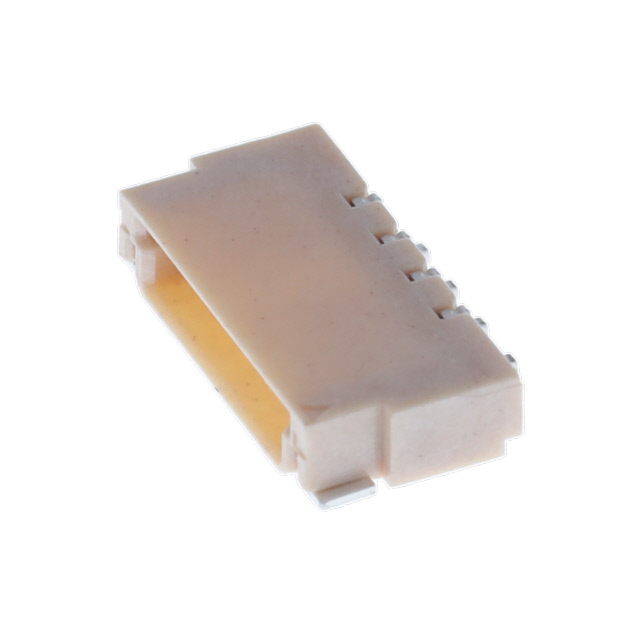

JAE Electronics FI-S4P-HFE	Beige	Solder Retention	Male Pin	0.049 in	1.25 mm	Solder	All	4	1.8 mm	0.071 in	Board to Cable/Wire	80 °C	-40 C	Shrouded - 4 Wall	1 A	200 V	Receptacle	Gold	Square	1	Tin Tin-Alloy	Copper Alloy	Right Angle Surface Mount	UL94 V-0	Friction Lock

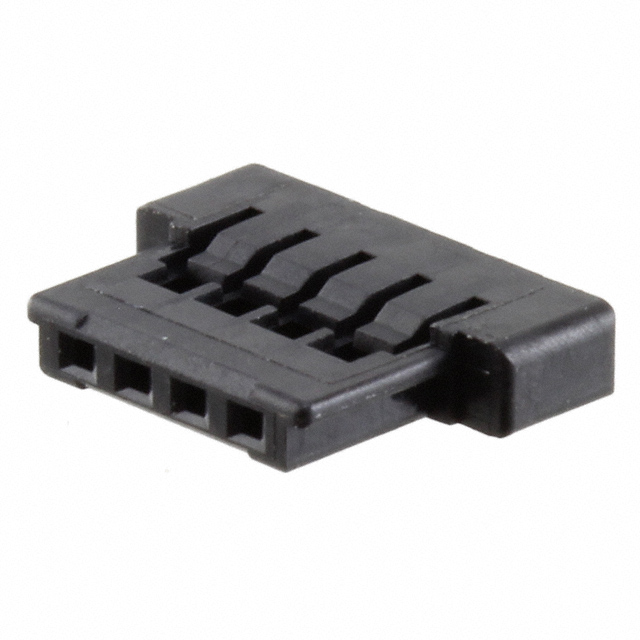

JAE Electronics FI-S4S			Female Socket					4									Plug			1			Free Hanging (In-Line)		Friction Lock	Contacts Not Included	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	0.049 in	1.25 mm	Black
JAE Electronics FI-S4P-HFE-E1500	Beige	Solder Retention	Male Pin	0.049 in	1.25 mm	Solder	All	4	1.8 mm	0.071 in	Board to Cable/Wire	80 °C	-40 C	Shrouded - 4 Wall	1 A	200 V	Receptacle	Gold	Square	1	Tin Tin-Alloy	Copper Alloy	Right Angle Surface Mount	UL94 V-0	Friction Lock
