6331 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

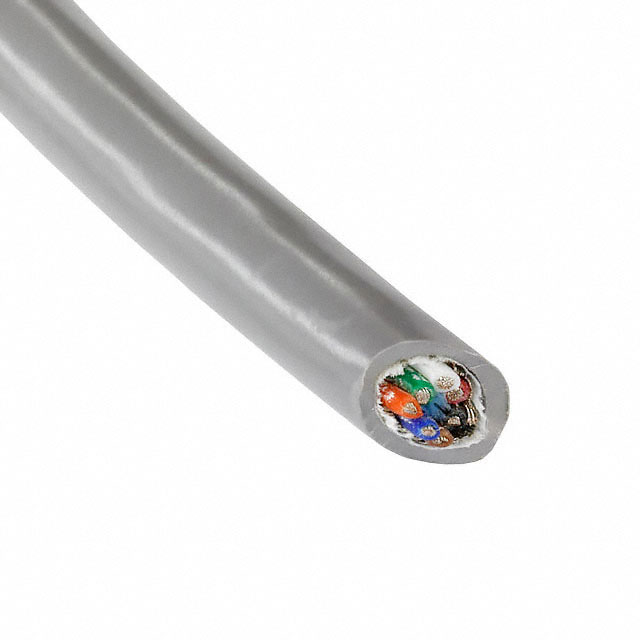

CABLE 7COND 24AWG SHLD
| Part | Shield Material | Shield Coverage | Conductor Material | Ratings | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Length | Length | Wire Gauge | Cable Type | Voltage | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | UL Style 2464 | 7 | 0.223 " | 5.66 mm | Drain Wire | 304.8 m | 1000 ft | 24 AWG | Multi-Conductor | 300 VDC | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Braid Foil | 80 °C | -20 ░C | 0.813 mm | 0.032 in | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | UL Style 2464 | 7 | 0.223 " | 5.66 mm | Drain Wire | 24 AWG | Multi-Conductor | 300 VDC | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Braid Foil | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | UL Style 2464 | 7 | 0.223 " | 5.66 mm | Drain Wire | 152.4 m | 500 ft | 24 AWG | Multi-Conductor | 300 VDC | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Braid Foil | 80 °C | -20 ░C | 0.813 mm | 0.032 in |
