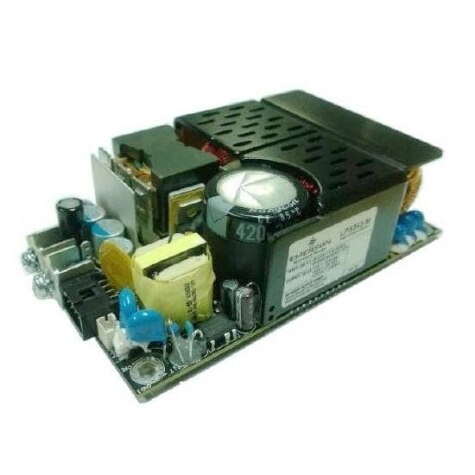

LPS364 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 15V 16A 240W 16-PIN
| Part | Minimum Load Required | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Approval Agency | Current - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Features | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Power (Watts) | Efficiency | Applications | Voltage - Output 1 | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 70 °C | 0 °C | 1 | CB CE | 16 A | 5 " | 3 " | 1.37 in | 127 mm | 34.8 mm | 76.2 mm | Open Frame | Adjustable Output DC Input Capable I2C Interface PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 264 VAC | 90 VAC | 240 Watts | 360 W | 92 % | ITE (Commercial) Medical | 15 V | Chassis Mount |
