WR9QC4000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

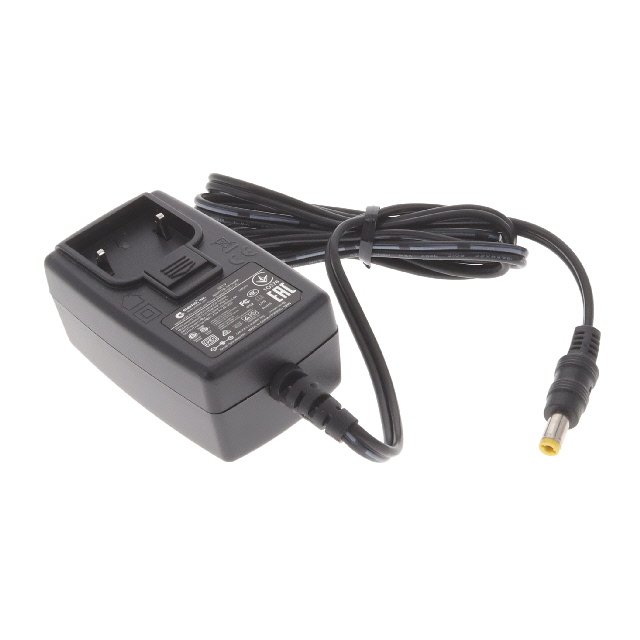

AC/DC WALL MNT ADAPTER 7.5V 30W
| Part | Cord Length | Cord Length | Input Type | Efficiency | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Current - Output (Max) [Max] | No Load Power Consumption | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Output Connector [x] | Output Connector [diameter] | Output Connector | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Power (Watts) | Form | Region Utilized | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 1.2 m | 47.2 in | Multi-Blade (Sold Separately) | CoC Tier 2 Level VI | 7.5 V | 264 VAC | 90 VAC | Multi-Blade (Sold Separately) | 4 A | 75 mW | Household Appliances ITE (Commercial) Medical | 74 mm | 1.45 in | 2.91 in | 43.5 mm | 1.71 in | 36.8 mm | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Positive Center | -20 ░C | 50 °C | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 30 Watts | Wall Mount | International | CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI |
