104439 Series

Catalog

5X4 MTE RCPT SR PLAIN .100CL ROHS COMPLIANT: NO

Part	Wire Type	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch	Pitch	Cable Termination	Features	Color	Number of Rows
TE Connectivity AMP Connectors 104439-3	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	4	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1
TE Connectivity AMP Connectors 104439-1	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	2	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1
TE Connectivity AMP Connectors 104439-8	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	9	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1
TE Connectivity AMP Connectors 104439-4	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	5	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1
TE Connectivity AMP Connectors 104439-9	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	10	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1

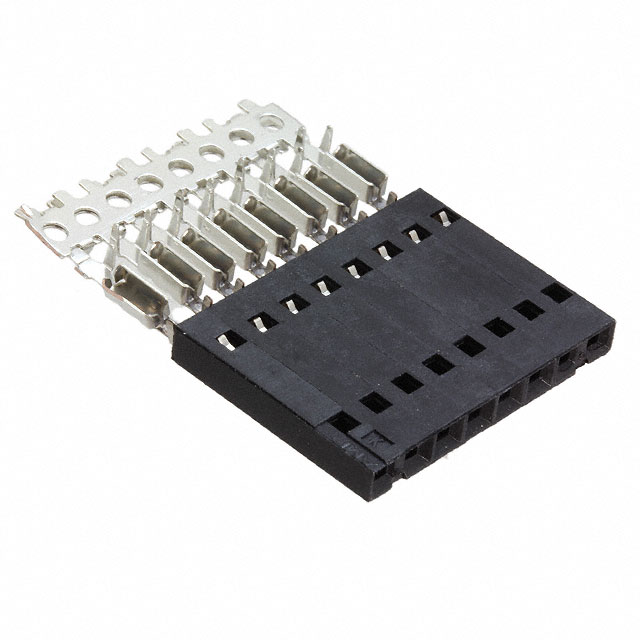

TE Connectivity AMP Connectors 104439-7	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	8	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1
TE Connectivity AMP Connectors 1-104439-1	Ribbon Cable	Female Socket	26 AWG	22 AWG	Gold	Free Hanging (In-Line)	12	30 Áin	0.76 Ám	Receptacle	0.1 "	2.54 mm	IDC	Closed End	Black	1
