JWL11B Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPST 16A 125V
| Part | Electrical Life | Mechanical Life | Features | Ingress Protection | Color - Actuator/Cap | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Actuator Marking | Mounting Type | Termination Style | Termination Style | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Circuit | Voltage Rating - AC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

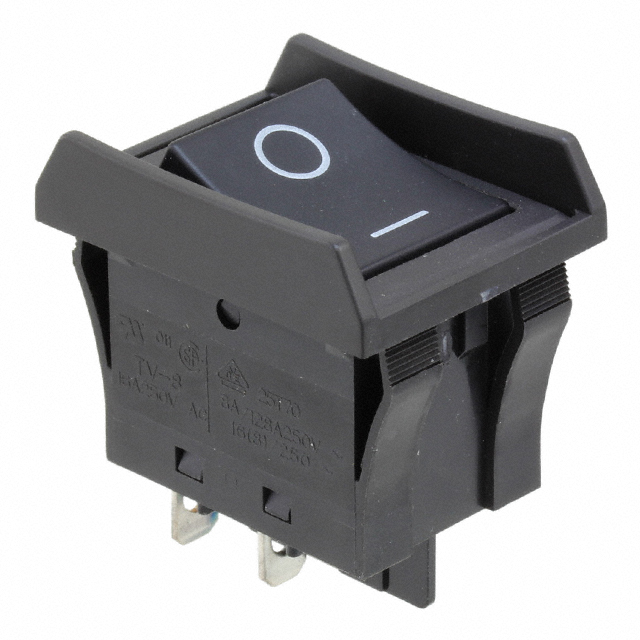

 NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Black | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | O I | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
 NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Red | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | O - | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
 NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | No Marking | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE | |
NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Red | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | No Marking | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Black | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | O - | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Black | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | No Marking | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |

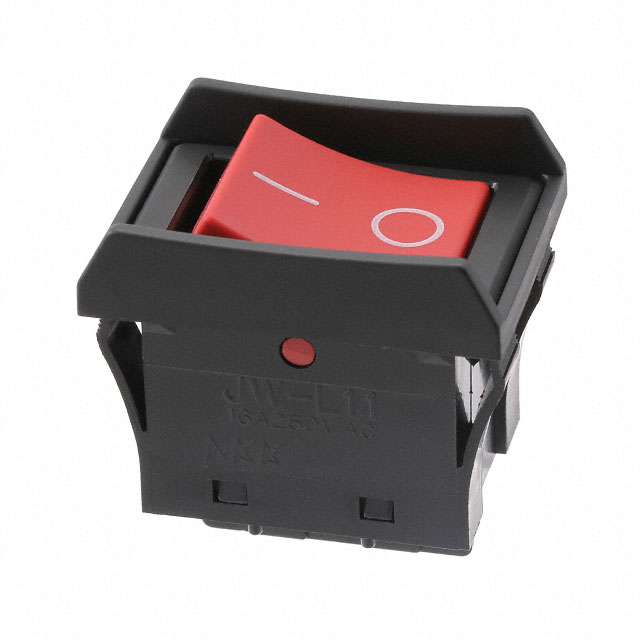

NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Red | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | O I | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Red | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | No Marking | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | No Marking | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE | |
NKK Switches | 25000 Steps | 25000 Steps | Epoxy Sealed Terminals | Dust Proof | Black | Concave (Curved) | 20.5 mm | 29.5 mm | On-Off | O - | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | -25 °C | 70 °C | 16 A | SPST | 125 V | CSA UL VDE |
