RB531SM-30FH Series

30V, 100mA, SOT-363, Schottky Barrier Diode

Catalog

30V, 100mA, SOT-363, Schottky Barrier Diode

Part	Mounting Type	Grade	Package / Case	Qualification	Current - Reverse Leakage @ Vr	Speed	Speed	Technology	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Diode Configuration	Current - Average Rectified (Io) (per Diode)

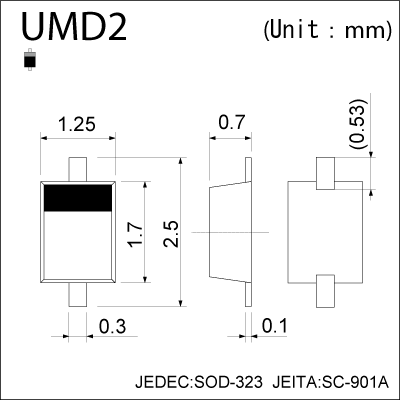

Rohm Semiconductor RB531VM-30FHTE-17	Surface Mount	Automotive	SC-90 SOD-323F	AEC-Q101	45 µA	Any Speed	200 mA	Schottky	125 °C	490 mV	100 mA	UMD2	30 V
Rohm Semiconductor RB531SM-30FHT2R	Surface Mount	Automotive	SC-79 SOD-523	AEC-Q101	10 µA	Any Speed	200 mA	Schottky	125 °C		200 mA	EMD2	30 V	350 mV
Rohm Semiconductor RB531CM-30T2R	Surface Mount		2-SMD Flat Leads		7 µA	Any Speed	200 mA	Schottky	125 °C	370 mV	100 mA	VMN2 (SOD-923)	30 V
Rohm Semiconductor RB531XNTR	Surface Mount		6-TSSOP SC-88 SOT-363		20 µA	Any Speed	200 mA	Schottky	125 °C	430 mV		UMD6	30 V		3 Independent	100 mA
Rohm Semiconductor RB531CM-40T2R	Surface Mount		2-SMD Flat Leads		25 µA	Any Speed	200 mA	Schottky	125 °C	410 mV	100 mA	VMN2 (SOD-923)	40 V
Rohm Semiconductor RB531SM-40T2R	Surface Mount		SC-79 SOD-523		100 çA	Any Speed	200 mA	Schottky	125 °C	610 mV	100 mA	EMD2	40 V
Rohm Semiconductor RB531VM-40FHTE-17	Surface Mount	Automotive	SC-90 SOD-323F	AEC-Q101	100 çA	Any Speed	200 mA	Schottky	150 °C	610 mV	100 mA	UMD2	40 V
Rohm Semiconductor RB531VM-40TE-17	Surface Mount		SC-90 SOD-323F		100 çA	Any Speed	200 mA	Schottky	150 °C	610 mV	100 mA	UMD2	40 V

30V, 100mA, SOT-363, Schottky Barrier Diode

• Ultra small mold type (VMN2M), High reliability, Super Low VF

ROHM's schottky barrier diodes are low VF, low IR and high ESD resistant, suitable for phone and various portable electronics.
