M83513/17 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

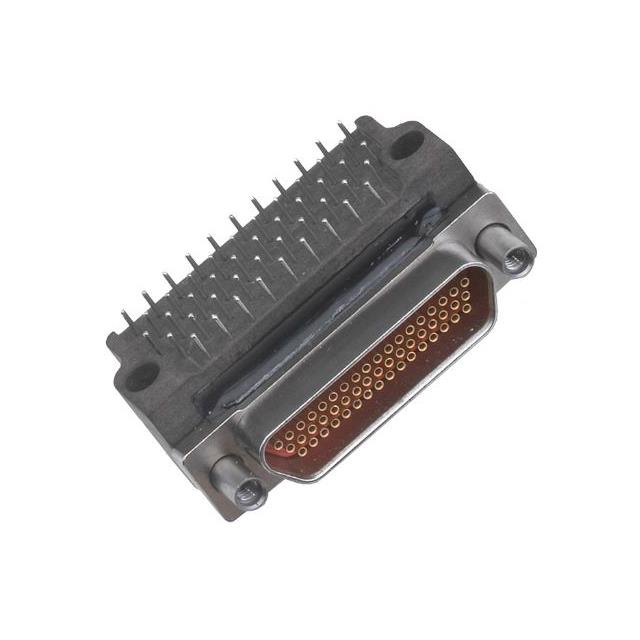

51 POS PLUG STD 90 PCB CD PLTD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Number of Positions | Contact Finish | Connector Style | Connector Type | Current Rating (Amps) | Backset Spacing | Backset Spacing | Material Flammability Rating | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | -55 C | 125 °C | Copper Alloy | Polyester Glass Filled | Aluminum Alloy Yellow Chromate Plated Cadmium | 0.05 | 0.05 | Mating Side Female Screwlock (2-56) | Signal | 50 µin | 1.27 µm | Right Angle Through Hole | Solder | 51 | Gold | D-Type Micro-D | Plug Male Pins | 3 A | 0.275 in | 6.99 mm | UL94 V-0 | 3 |
