TMP114 Series

0.15-mm height, 1.2-V capable temperature sensor with 0.2°C accuracy

Catalog

0.15-mm height, 1.2-V capable temperature sensor with 0.2°C accuracy

Part	Mounting Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Accuracy - Highest (Lowest)	Package / Case	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Resolution	Sensor Type	Test Condition [Max]	Test Condition [Max]	Test Condition [Min]	Test Condition [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Test Condition

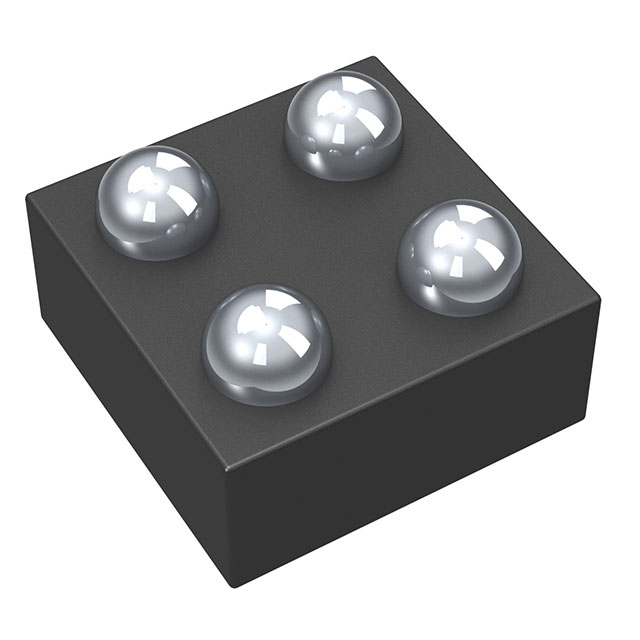

Texas Instruments TMP114BIYMTR	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	0.3 °C 0.5 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local	125 °C	85 °C	-40 °C	-10 °C	-40 °C	125 °C
Texas Instruments TMP114AIYMTT	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	0.3 °C 0.5 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local	125 °C	85 °C	-40 °C	-10 °C	-40 °C	125 °C
Texas Instruments TMP114DIYMTR	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	0.3 °C 0.5 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local	125 °C	85 °C	-40 °C	-10 °C	-40 °C	125 °C
Texas Instruments TMP114NBIYMTR	Surface Mount	I2C/SMBus	1.08 V	1.98 V	One-Shot Programmable Limit Shutdown Mode Standby Mode	125 °C	-40 °C	1 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local					-40 °C	125 °C	-40°C ~ 125°C 0°C ~ 85°C
Texas Instruments TMP114NDIYMTR	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	1 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local	125 °C	85 °C	-40 °C	-10 °C	-40 °C	125 °C
Texas Instruments TMP114AIYMTR	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	0.3 °C 0.5 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local	125 °C	85 °C	-40 °C	-10 °C	-40 °C	125 °C
Texas Instruments TMP114NAIYMTT	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	1 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local					-40 °C	125 °C	-40°C ~ 125°C 0°C ~ 85°C
Texas Instruments TMP114NAIYMTR	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	1 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local					-40 °C	125 °C	-40°C ~ 125°C 0°C ~ 85°C
Texas Instruments TMP114NCIYMTR	Surface Mount	2-Wire Serial I2C/SMBus	1.08 V	1.98 V	One-Shot Shutdown Mode Standby Mode	125 °C	-40 °C	1 °C	4-XFBGA DSBGA	4-PICOSTAR	0.76	0.76	16 b	Digital Local					-40 °C	125 °C	-40°C ~ 125°C 0°C ~ 85°C

Catalog

0.15-mm height, 1.2-V capable temperature sensor with 0.2°C accuracy

Key Features

• High accuracyTMP114:±0.2°C maximum from 20°C to 50°C±0.3°C maximum from –10°C to 80°C±0.5°C maximum from –40°C to 125°CTMP114N:±1°C maximum from –40°C to 125°COperating temperature range: –40°C to 125°C16-bit resolution: 0.0078°C (LSB)Low power consumption:Average supply current: 0.7 µAShutdown current: 0.16 µASupply range: 1.08 V to 1.98 VResponse time: 300 ms1.2-V compatible logic inputs independent of supply voltageI 2C and SMBus compatible interface50-ns spike filter to coexist on I3C mixed busOptional Cyclic Redundancy Check (CRC)Adjustable averagingAdjustable conversion time and periodContinuous or one-shot conversion modeTemperature alert status with hysteresisNIST traceabilityUltra-thin 4-ball PicoStar (DSBGA) package with 0.15-mm heightHigh accuracyTMP114:±0.2°C maximum from 20°C to 50°C±0.3°C maximum from –10°C to 80°C±0.5°C maximum from –40°C to 125°CTMP114N:±1°C maximum from –40°C to 125°COperating temperature range: –40°C to 125°C16-bit resolution: 0.0078°C (LSB)Low power consumption:Average supply current: 0.7 µAShutdown current: 0.16 µASupply range: 1.08 V to 1.98 VResponse time: 300 ms1.2-V compatible logic inputs independent of supply voltageI 2C and SMBus compatible interface50-ns spike filter to coexist on I3C mixed busOptional Cyclic Redundancy Check (CRC)Adjustable averagingAdjustable conversion time and periodContinuous or one-shot conversion modeTemperature alert status with hysteresisNIST traceabilityUltra-thin 4-ball PicoStar (DSBGA) package with 0.15-mm height

Description

The TMP114 is a high accuracy, I 2C-compatible digital temperature sensor in an ultra-thin (0.15 mm) 4-pin package. The small size and low height of the TMP114 package optimizes volume constrained systems and enables novel placement of the sensor under other surface mount components for the fastest and most accurate temperature measurement. The TMP114 has an accuracy of ±0.2°C and offers an on-chip 16-bit analog-to-digital converter (ADC) that provides a temperature resolution of 0.0078°C. The TMP114 is 100% tested on a production setup that is NIST traceable. To maximize battery life, the TMP114 is designed to operate from a supply voltage range of 1.08 V to 1.98 V, with a low average supply current of less than 0.7 µA. The TMP114 is a high accuracy, I 2C-compatible digital temperature sensor in an ultra-thin (0.15 mm) 4-pin package. The small size and low height of the TMP114 package optimizes volume constrained systems and enables novel placement of the sensor under other surface mount components for the fastest and most accurate temperature measurement. The TMP114 has an accuracy of ±0.2°C and offers an on-chip 16-bit analog-to-digital converter (ADC) that provides a temperature resolution of 0.0078°C. The TMP114 is 100% tested on a production setup that is NIST traceable. To maximize battery life, the TMP114 is designed to operate from a supply voltage range of 1.08 V to 1.98 V, with a low average supply current of less than 0.7 µA.
