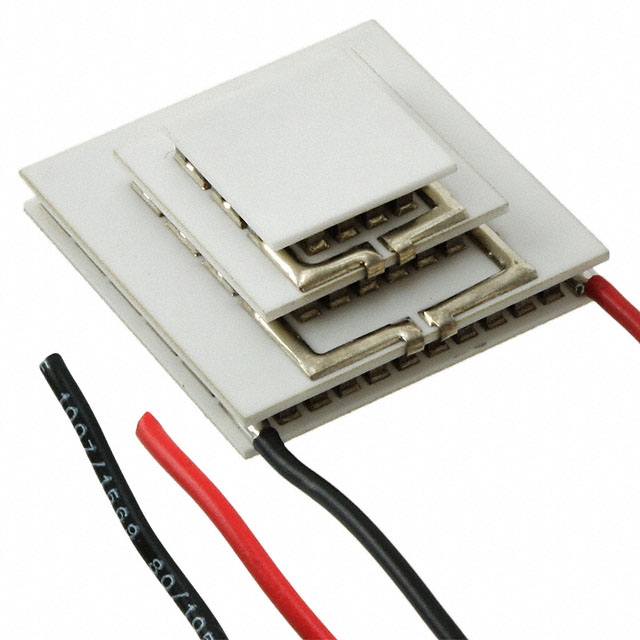

9350004 Series

Catalog

MS3,119,14,15,11,21,W8

Part	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Features	Operating Temperature	Number of Stages [custom]	Qmax @ Th	Voltage - Max [Max]	Height [z]

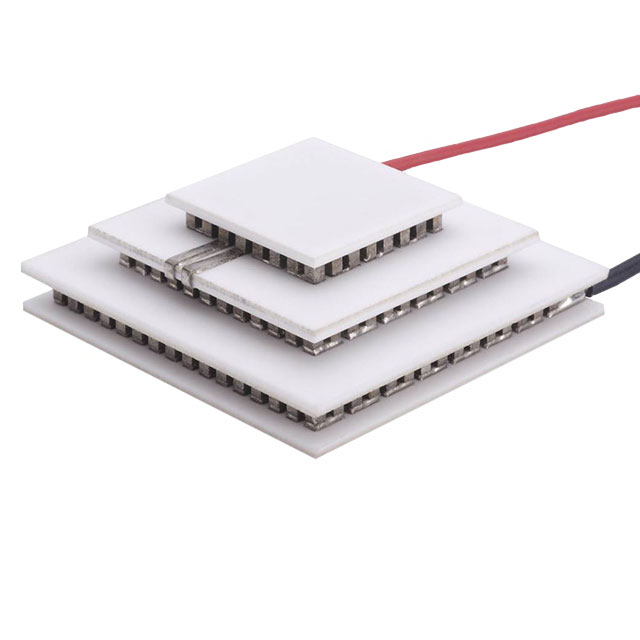

Laird Thermal Systems, Inc. 9350004-397	100 °C	3.9 A	30 mm	30 mm	Lead Wires Non-Sealed	80 °C	3	7.5 W	8.1 V	10.39 mm
Laird Thermal Systems, Inc. 9350004-301	100 °C	3.9 A	30 mm	30 mm	Lead Wires Non-Sealed	80 °C	3	7.5 W	8.1 V	10.39 mm
Laird Thermal Systems, Inc. 9350004-399	100 °C	3.9 A	30 mm	30 mm	Lead Wires Non-Sealed	80 °C	3	7.5 W	8.1 V	10.59 mm
