H2177 Series
Manufacturer: Harwin Inc.
Beta
⌘K

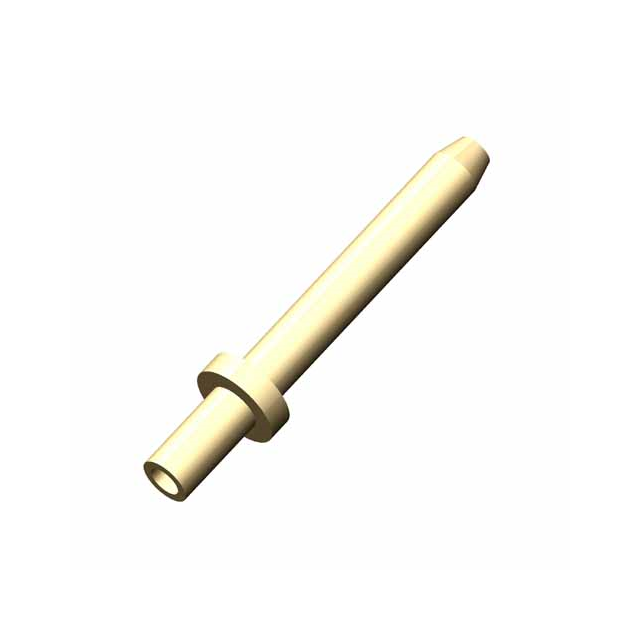

CONN PC PIN CIRC 0.041DIA GOLD
| Part | Contact Material | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Insulation | Termination | Contact Finish | Length - Overall [x] | Length - Overall [x] | Terminal Type | Board Thickness | Board Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Brass | Through Hole | 0.255 in | 6.48 mm | 0.08 " | 2.03 mm | Single End | Non-Insulated | Swage | Gold | 0.355 in | 9.02 mm | PC Pin | 0.063 in | 1.6 mm | 0.041 in | 1.04 mm | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | 1.77 mm | 0.07 in |
