R1146650 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

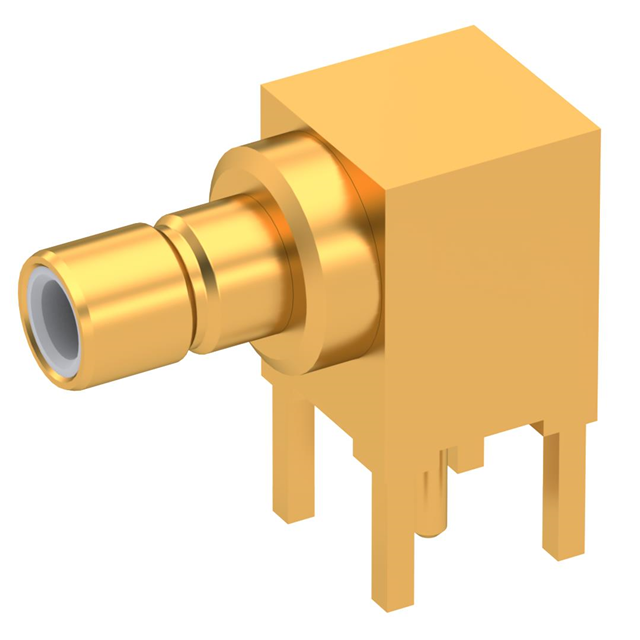

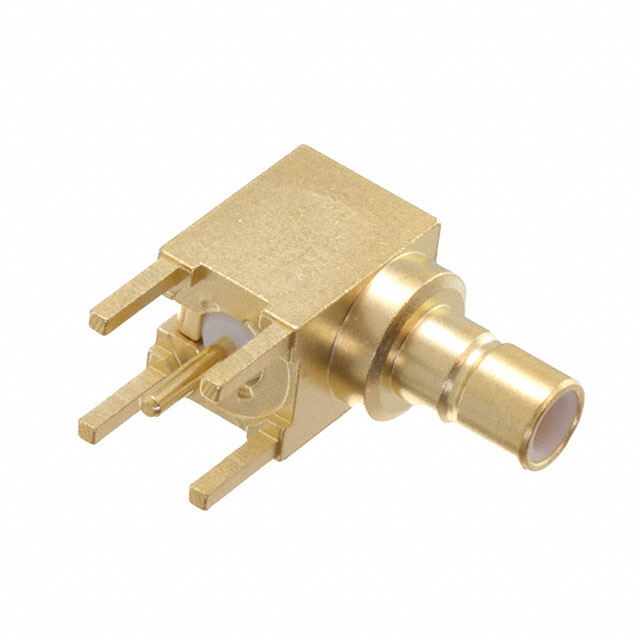

SMB F RA PCB
| Part | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Center Contact Plating | Dielectric Material | Connector Style | Shield Termination | Connector Type | Fastening Type | Contact Termination | Frequency - Max [Max] | Number of Ports | Mounting Type | Impedance | Center Contact Material | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | 500 | 500 V | Gold | Polytetrafluoroethylene (PTFE) | SMB | Solder | Jack Male Pin | Snap-On | Solder | 4 GHz | 1 | Right Angle Through Hole | 50 Ohms | Brass | Gold |
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | 500 | 500 V | Gold | Polytetrafluoroethylene (PTFE) | SMB | Solder | Jack Male Pin | Snap-On | Solder | 4 GHz | 1 | Right Angle Through Hole | 50 Ohms | Brass | Gold |
