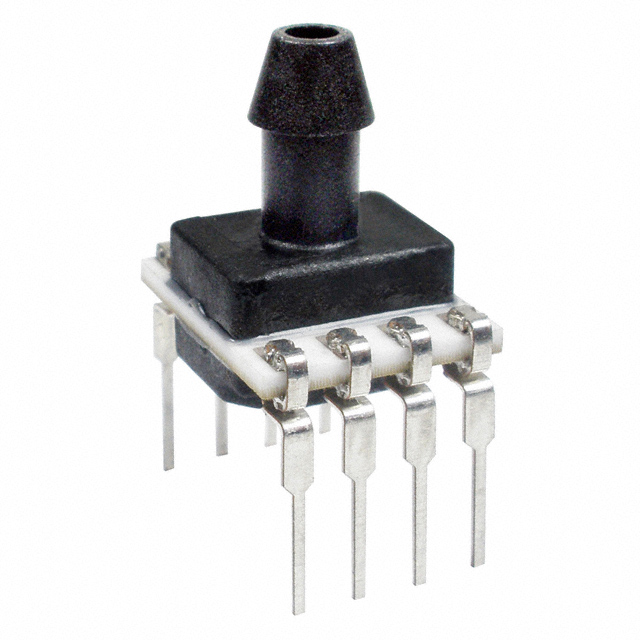

NSCDANN Series

Catalog

SENSOR 100PSIG 0.19" .086V 8DIP

Part	Accuracy	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Supplier Device Package	Port Size	Port Size	Applications	Output Type	Operating Pressure	Operating Pressure	Port Style	Pressure Type	Package / Case	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]

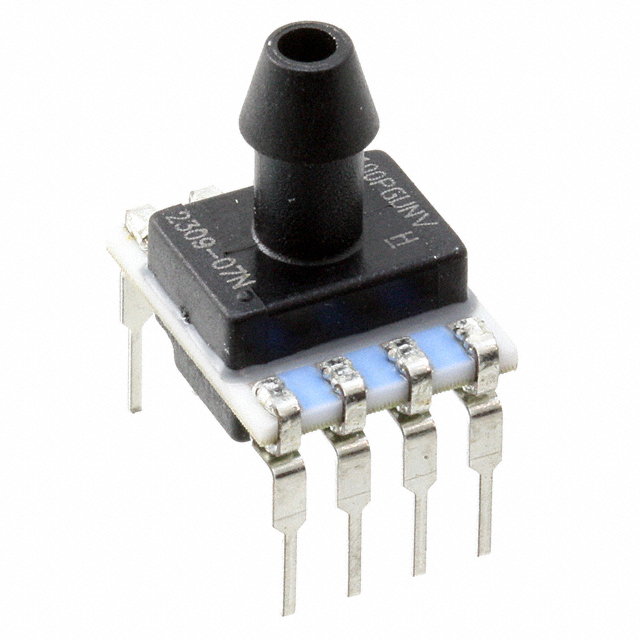

Honeywell Sensing and Productivity Solutions NSCDANN100PGUNV	0.25 %	86 mV	250 PSI	1723.69 kPa	85 °C	-40 °C	PC Pin	Through Hole	8-DIP	4.93 mm	0.19 "	Board Mount	Wheatstone Bridge	689.48 kPa	100 PSI	Barbed	Vented Gauge	0.524 " 13.3 mm	8-DIP	12 V	1.5 V
Honeywell Sensing and Productivity Solutions NSCDANN150PGUNV	0.25 %	129.5 mV	250 PSI	1723.69 kPa	85 °C	-40 °C	PC Pin	Through Hole	8-DIP	4.93 mm	0.19 "	Board Mount	Wheatstone Bridge	1034.21 kPa	150 PSI	Barbed	Vented Gauge	0.524 " 13.3 mm	8-DIP	12 V	1.5 V
Honeywell Sensing and Productivity Solutions NSCDANN100PAUNV	0.25 %	63 mV	250 PSI	1723.69 kPa	85 °C	-40 °C	PC Pin	Through Hole	8-DIP	4.93 mm	0.19 "	Board Mount	Wheatstone Bridge	689.48 kPa	100 PSI	Barbed		0.524 " 13.3 mm	8-DIP	12 V	1.5 V
