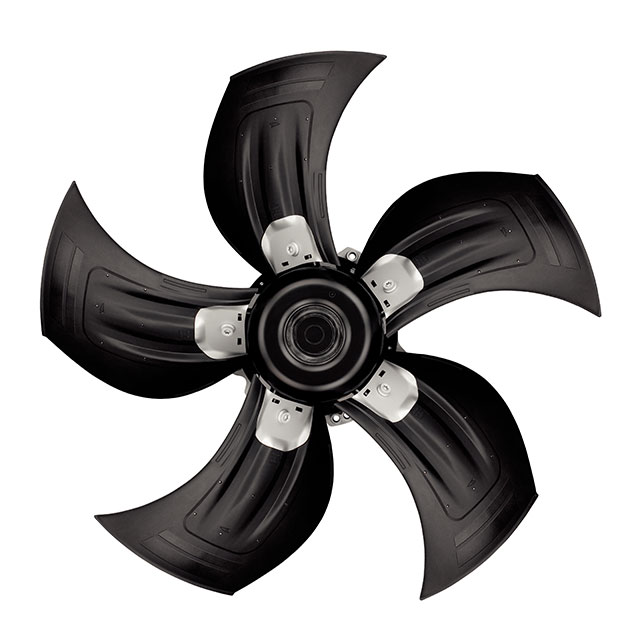

W3G910 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL
| Part | Material - Blade [custom] | Material - Frame | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Width [x] | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Approval Agency | Ingress Protection | Features | Air Flow | Air Flow | Weight | Weight | RPM | Voltage Range [Min] | Voltage Range [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | Aluminum | 8.6 A | 1070 mm | 1070 mm | 307 mm | Tubeaxial | -25 °C | 60 °C | 240 VAC | UL | IP54 - Dust Protected Water Resistant | Electronic Commutation (EC) | 21150 CFM | 592.2 m³/min | 56.7 kg | 125 lbs | 1195 RPM | |||
ebm-papst Inc. | Aluminum | Aluminum | 4.3 A | 1070 mm | 1070 mm | 307 mm | Tubeaxial | -25 °C | 60 °C | 480 VAC | UL | IP54 - Dust Protected Water Resistant | Electronic Commutation (EC) | 21150 CFM | 592.2 m³/min | 56.7 kg | 125 lbs | 1195 RPM | 380 VAC | 480 VAC | 3040 W |
