842-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Number of Rows [custom]	Gender	Number of Positions	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Read Out	Features	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 842-080-560-212	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Cantilever	Dual	Card Extender	0.1 "	2.54 mm	40	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm

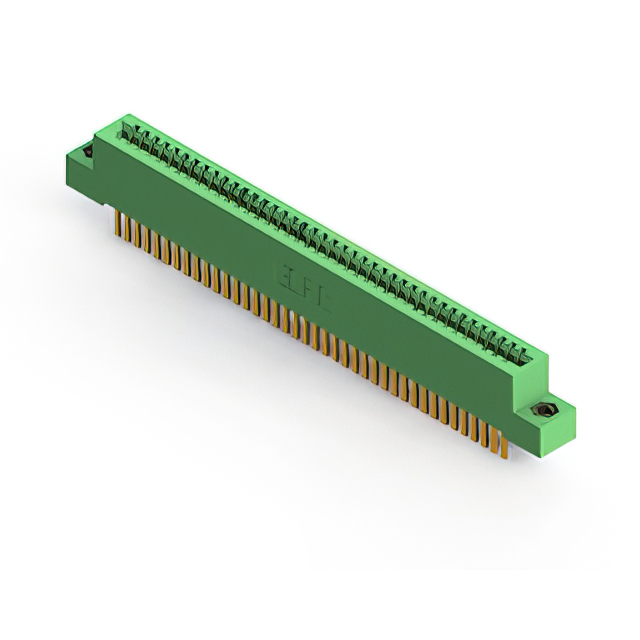

EDAC Inc. 842-080-544-207	2	Diallyl Phthalate (DAP)	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening			Cantilever	Dual		0.1 "	2.54 mm	40	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-080-560-208	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			Cantilever	Dual	Card Extender	0.1 "	2.54 mm	40	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-080-555-203	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Cantilever	Dual	Card Extender	0.1 "	2.54 mm	40	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm

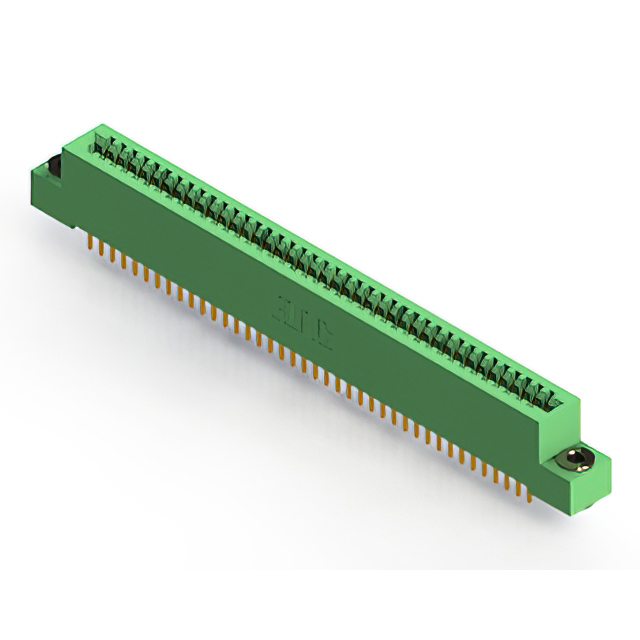

EDAC Inc. 842-080-521-203	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Cantilever	Dual		0.1 "	2.54 mm	40	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm

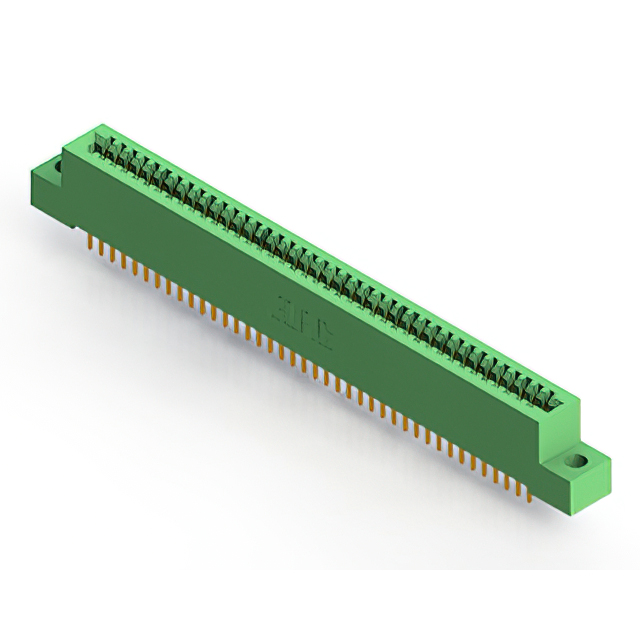

EDAC Inc. 842-080-521-204	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Cantilever	Dual		0.1 "	2.54 mm	40	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-080-541-204	2	Diallyl Phthalate (DAP)	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Cantilever	Dual		0.1 "	2.54 mm	40	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm

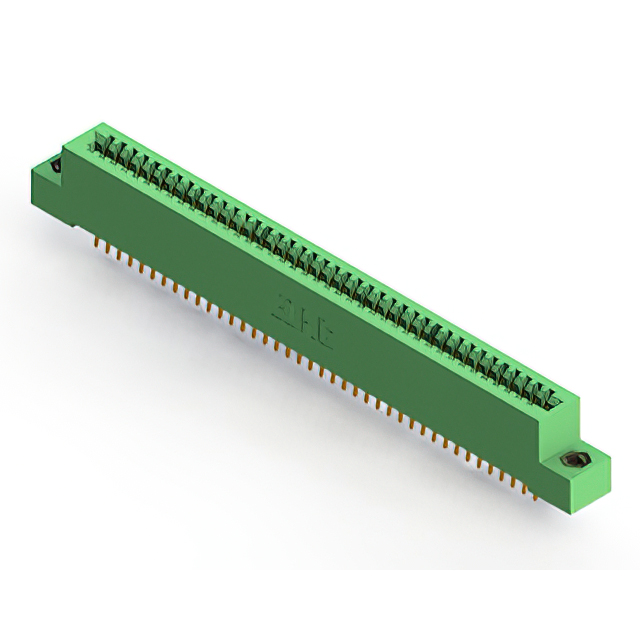

EDAC Inc. 842-080-556-208	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			Cantilever	Dual	Card Extender	0.1 "	2.54 mm	40	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm

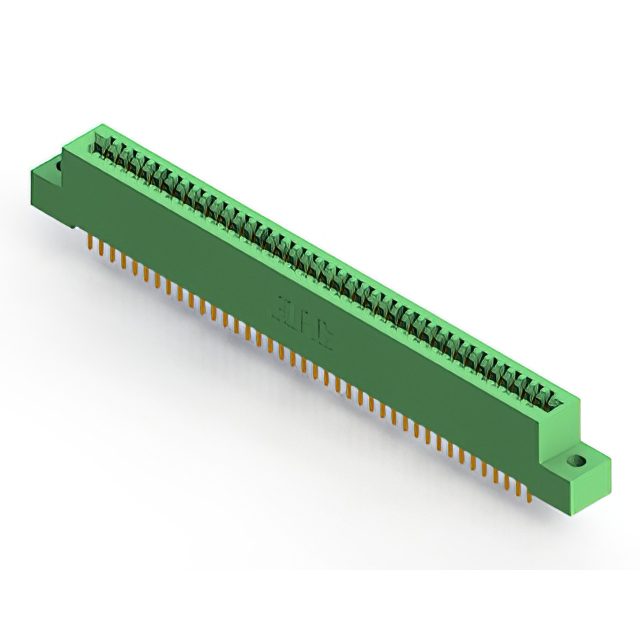

EDAC Inc. 842-080-521-202	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Cantilever	Dual		0.1 "	2.54 mm	40	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-080-558-204	2	Diallyl Phthalate (DAP)	Solder	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	2	Female	80	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Cantilever	Dual		0.1 "	2.54 mm	40	125 °C	-40 C	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
