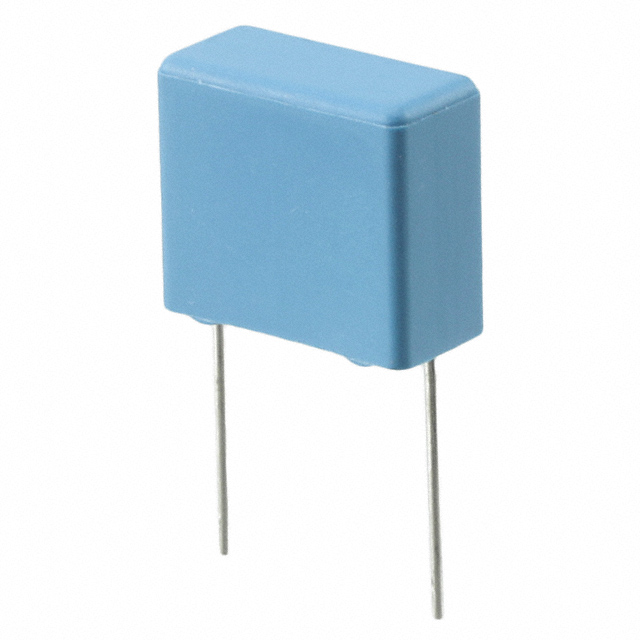

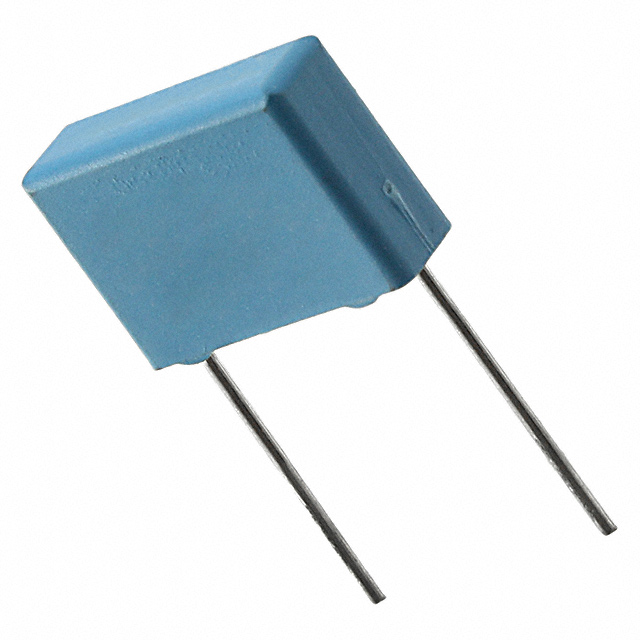

PHE820 Series

Manufacturer: KEMET

Catalog

CAP FILM 10000PF 20% 275VAC RAD

Part	Package / Case	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Ratings	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Termination	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Voltage Rating - DC	Height - Seated (Max) [Max] [z]
KEMET PHE820MB5100MR17	Radial	275 V	0.413 "	10.5 mm	20 %	X2	15 mm	0.591 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.217 in	0.709 in	5.5 mm	18 mm	10000 pF

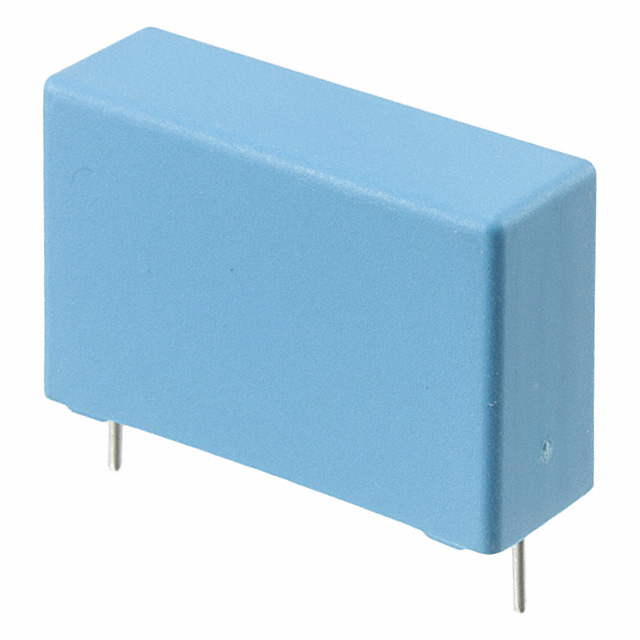

KEMET PHE820EF6330MR06L2	Radial	300 V			20 %	X2	27.5 mm	1.083 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.413 in	1.24 in	10.5 mm	31.5 mm	0.33 µF	0.807 in	20.5 mm
KEMET PHE820MD6220MR06L2	Radial	275 V	0.728 in	18.5 mm	20 %	X2	22.5 mm	0.886 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.354 in	1.024 in	9 mm	26 mm	0.22 µF			760 V
KEMET PHE820EB6100MR17	Radial	300 V			20 %	X2	15 mm	0.591 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.335 in	0.709 in	8.5 mm	18 mm	100000 pF	0.63 in			16 mm
KEMET PHE820MR7220MR06L2	Radial	275 V		36 mm	20 %	X2	37.5 mm	1.476 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.748 in	1.614 in	19 mm	41 mm	2.2 µF	1.417 "		760 V
KEMET PHE820EB5680MR17	Radial	300 V	0.571 "	14.5 mm	20 %	X2	15 mm	0.591 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.295 in	0.709 in	7.5 mm	18 mm	0.068 µF			760 V
KEMET PHE820MB5220MR17	Radial	275 V	0.413 "	10.5 mm	20 %	X2	15 mm	0.591 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.217 in	0.709 in	5.5 mm	18 mm	0.022 µF
KEMET PHE820ED6330MR06L2	Radial	300 V	0.846 "	21.5 mm	20 %	X2	22.5 mm	0.886 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.433 in	1.024 in	11 mm	26 mm	0.33 µF			760 V

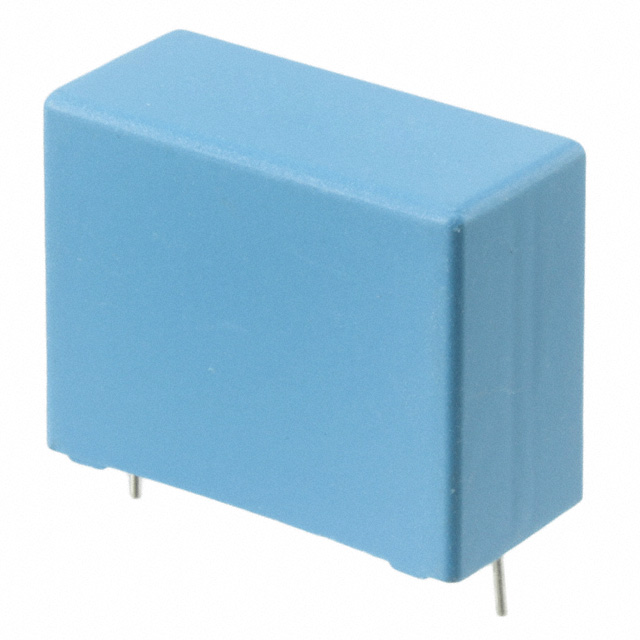

KEMET PHE820EF6680MR06L2	Radial	300 V	0.965 in	24.5 mm	20 %	X2	27.5 mm	1.083 in	Through Hole	-40 C	100 °C	EMI RFI Suppression	PC Pins	Polyester Metallized	0.571 "	1.24 in	14.5 mm	31.5 mm	0.68 µF
