Tls0 Series Series

Soft Sound Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

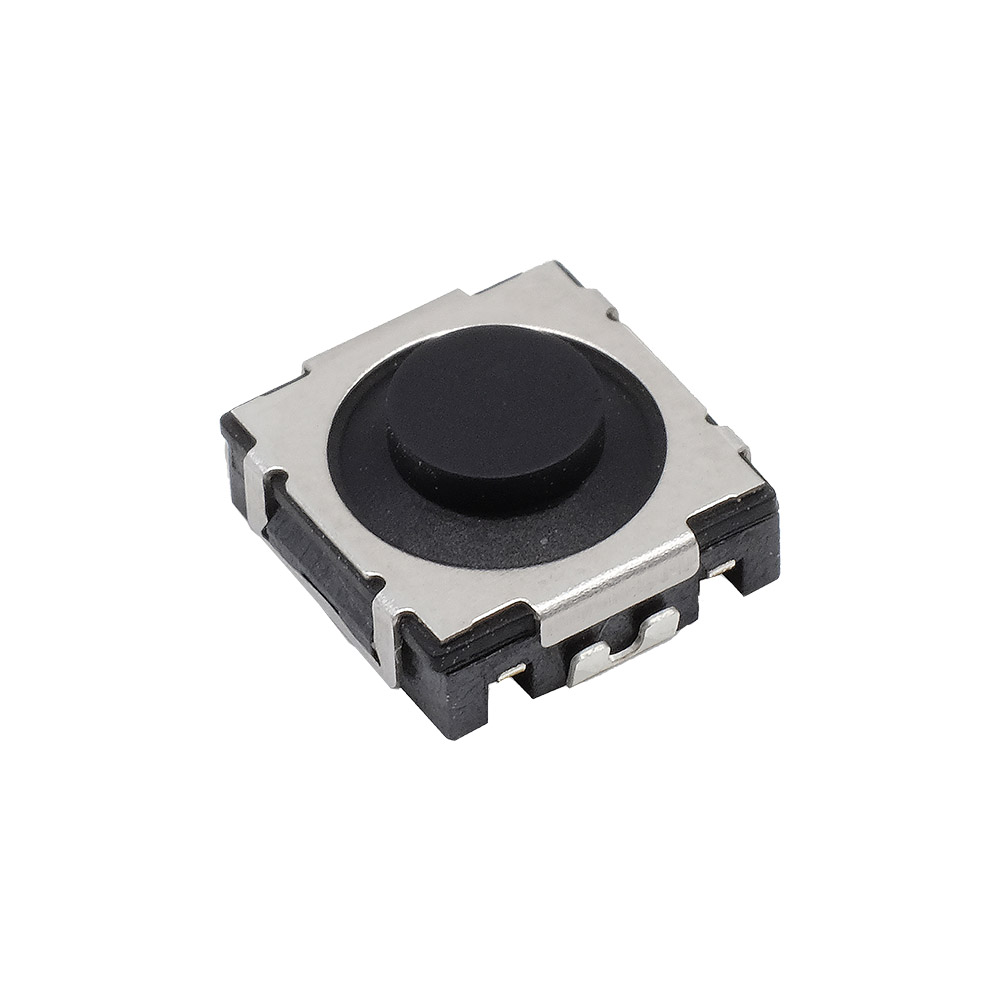

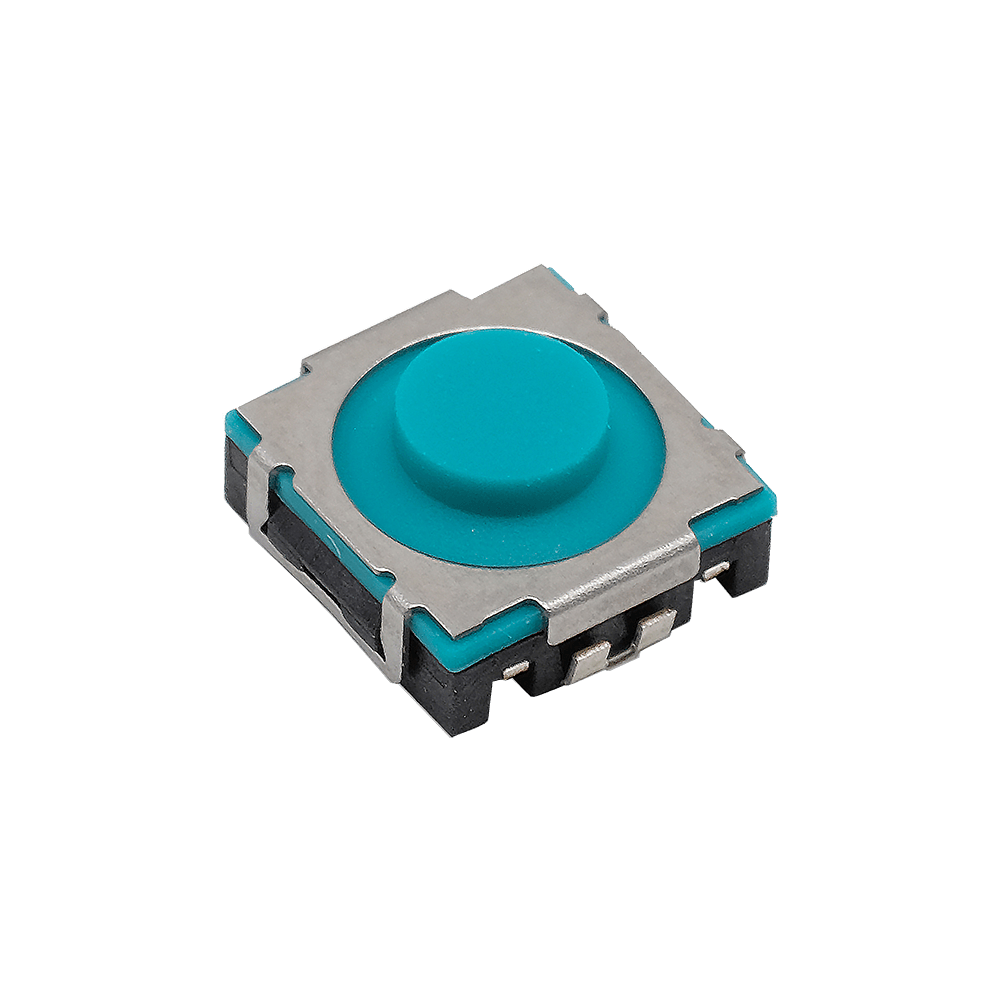

Soft Sound Tact Switch

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Operating Force	Switch Function	Actuator Height off PCB, Vertical [z]	Termination Style	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination	Mounting Type	Actuator Orientation	Circuit	Mechanical Life
Littelfuse/Commercial Vehicle Products TLS A 100J LFS	Standard	90 °C	-40 °C	IP54 - Dust Protected Water Resistant	1019 gf	Off-Mom	3.95 mm	J Lead	0.05 A 16 VDC	8 mm	8.4 mm	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	300000 Cycles
Littelfuse/Commercial Vehicle Products TLS A 040J LFS	Standard	90 °C	-40 °C	IP54 - Dust Protected Water Resistant	407 gf	Off-Mom	3.95 mm	J Lead	0.05 A 16 VDC	8 mm	8.4 mm	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	500000 Cycles

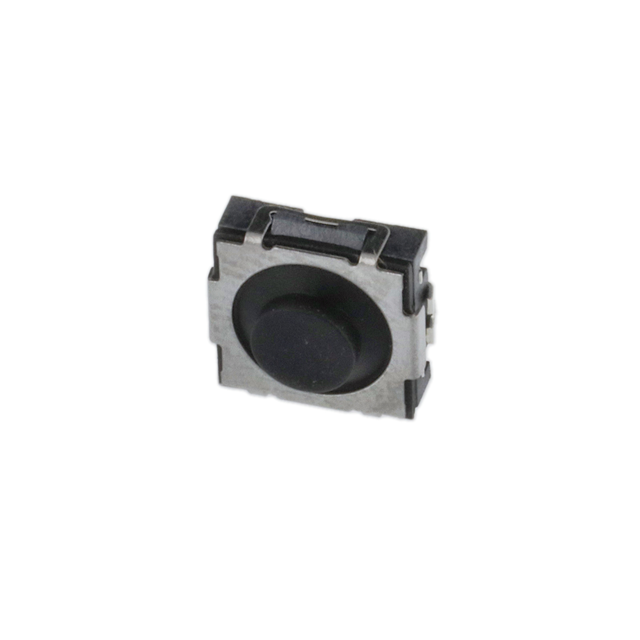

Littelfuse/Commercial Vehicle Products TLS A 070J LFS	Standard	90 °C	-40 °C	IP54 - Dust Protected Water Resistant	713 gf	Off-Mom	3.95 mm	J Lead	0.05 A 16 VDC	8 mm	8.4 mm	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	500000 Cycles

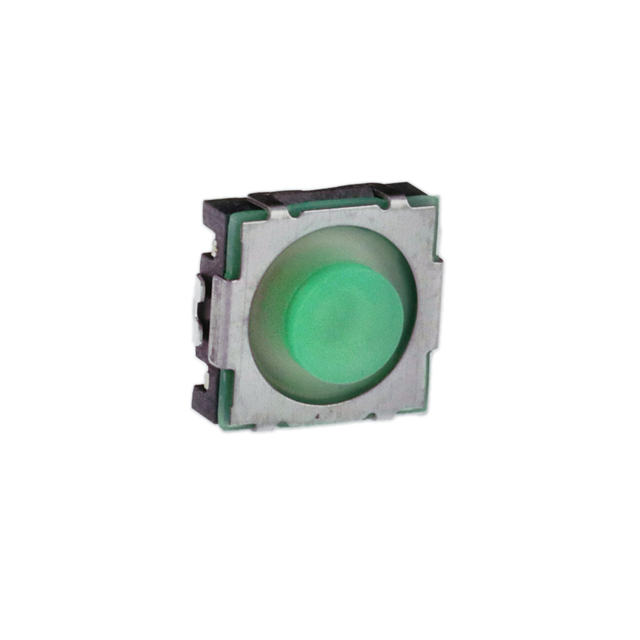

Littelfuse/Commercial Vehicle Products TLS A 100 T3J LFS	Standard	90 °C	-40 °C	IP54 - Dust Protected Water Resistant	1019 gf	Off-Mom	3.95 mm	J Lead	0.05 A 16 VDC	8 mm	8.4 mm	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	300000 Cycles

Catalog

Soft Sound Tact Switch

Key Features

• 8.6 x 8.4 x 3.95 mm form factor

• SMT versions J leads

• IP54

• Soft sound and long travel

• Soft actuator & pre-travel for an easier tolerance management with possible pre-load

Description

TLS is an additional tactile series in a new form factor (8.6 x 8.40 x 3.95 mm) in SMT, with soft actuator and a flat cage for a positive tactile feedback with a soft sound. Its soft actuator & pre-travel help for an easier tolerance management with possible pre-load.
