1742979 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

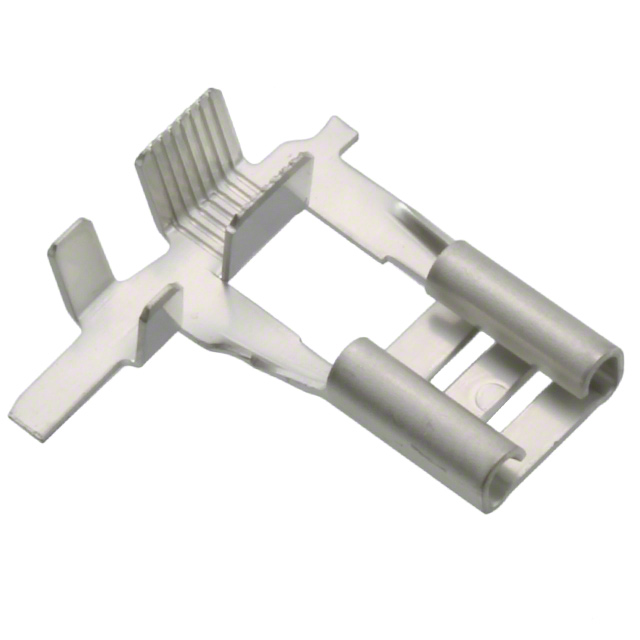

250FAST FLG RCPT AMVAR TPBR CMA4000-8500
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Tab Width [x] | Tab Width [x] | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Termination | Gender | Contact Finish | Contact Material | Mounting Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.15 in | 3.81 mm | 2.79 mm | 0.11 in | 6.35 mm | 0.25 in | Angled - 90° Flag | 4000 CMA | 8500 CMA | 0.81 mm | 0.032 in | 0.305 in | 7.75 mm | Crimp | Female | Tin | Brass | Free Hanging (In-Line) | Non-Insulated |
