SQS423 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

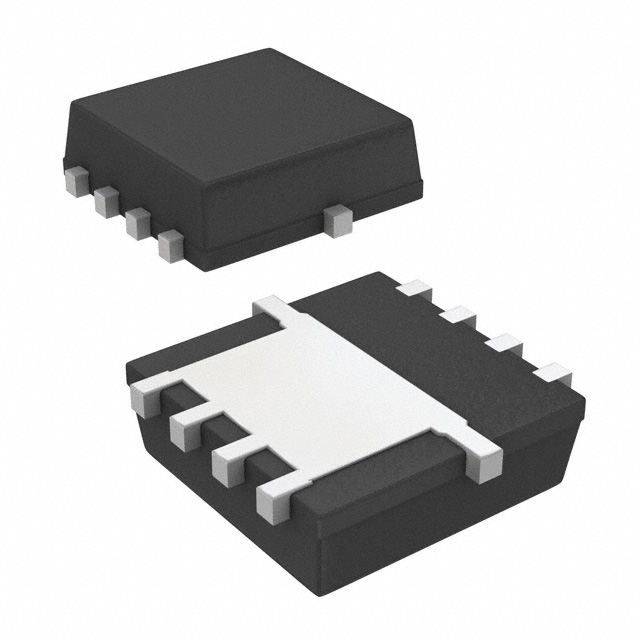

MOSFET P-CH 30V 16A POWERPAK1212
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Technology | Grade | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Rds On (Max) @ Id, Vgs | Qualification | Vgs (Max) | Drain to Source Voltage (Vdss) | Mounting Type | Package / Case | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | -55 °C | 175 ░C | 26 nC | 1975 pF | MOSFET (Metal Oxide) | Automotive | 2.5 V | 4.5 V 10 V | P-Channel | 21 mOhm | AEC-Q101 | 20 V | 30 V | Surface Mount | PowerPAK® 1212-8 | 16 A | PowerPAK® 1212-8 | 62.5 W |
