57000 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH ROCKER SPST 25A 12V
| Part | Actuator Type | Color - Actuator/Cap | Current Rating (Amps) | Mounting Type | Voltage Rating - DC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Circuit | Actuator Marking | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Concave (Standard V) | Black | 25 A | Panel Mount Snap-In | 12 V | 21.08 mm | 36.83 mm | SPST | No Marking | Quick Connect - 0.250" (6.3mm) | On-Off |

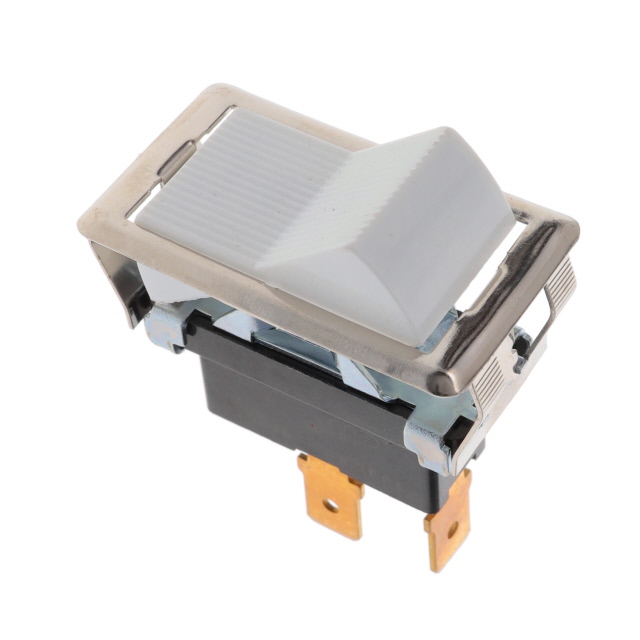

 Littelfuse/Commercial Vehicle Products | Concave (Standard V) | White | 25 A | Panel Mount Snap-In | 12 V | 21.08 mm | 36.83 mm | SPST | No Marking | Quick Connect - 0.250" (6.3mm) | On-Off |
