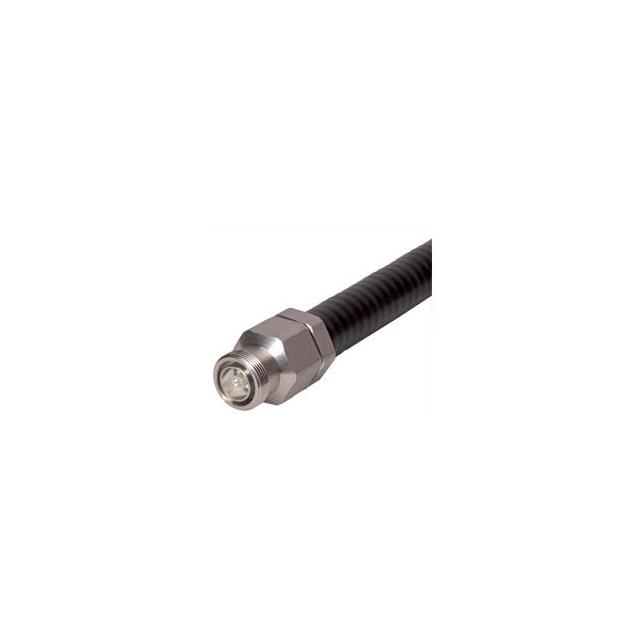

21_716-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
21_716-50-42-4/033_-E
| Part | Dielectric Material | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Finish | Contact Termination | Shield Termination | Frequency - Max [Max] | Number of Ports | Fastening Type | Impedance | Connector Style | Mounting Type | Connector Type | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 85 °C | -40 C | Brass Bronze | White Bronze | Crimp | Clamp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 85 °C | -40 C | Bronze | White Bronze | Crimp | Clamp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 85 °C | -40 C | Bronze | White Bronze | Crimp | Clamp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 85 °C | -40 C | Bronze | White Bronze | Crimp | Clamp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 85 °C | -40 C | Bronze | White Bronze | Crimp | Clamp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 165 °C | -65 ░C | Bronze | Silver | Crimp | Crimp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 2.5 kV | Silver | 85 °C | -40 C | Bronze | White Bronze | Crimp | Clamp | 7.5 GHz | 1 | Threaded | 50 Ohms | 7/16 DIN | Free Hanging (In-Line) | Female Socket Jack | Silver | 1/2" Helical |
