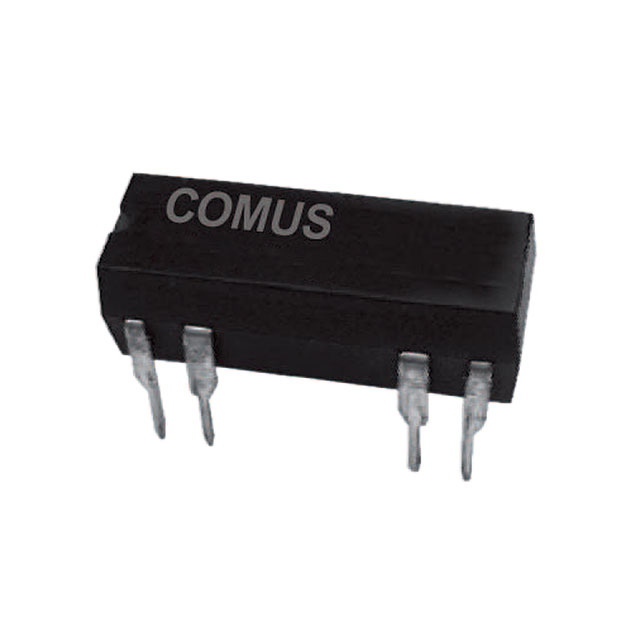

3570-1210 Series
Manufacturer: Comus International
Beta
⌘K
RELAY REED DIP SPST .5A 24V
| Part | Coil Resistance | Contact Form | Release Time | Must Operate Voltage | Contact Rating (Current) | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Switching Voltage [Max] | Coil Current | Termination Style | Coil Type | Mounting Type | Operate Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 2.15 kOhms | SPST-NO (1 Form A) | 0.5 ms | 18 VDC | 0.5 A | 2 VDC | 85 °C | -20 ░C | 24 VDC | 150 VDC | 11 mA | PC Pin | Non Latching | Through Hole | 500 µs | |
Comus International | 500 Ohms | SPST-NO (1 Form A) | 0.5 ms | 3.75 VDC | 0.5 A | 0.6 VDC | 85 °C | -20 ░C | 5 VDC | 150 VDC | 10 mA | PC Pin | Non Latching | Through Hole | 500 µs | Diode Electrostatic Shield |
