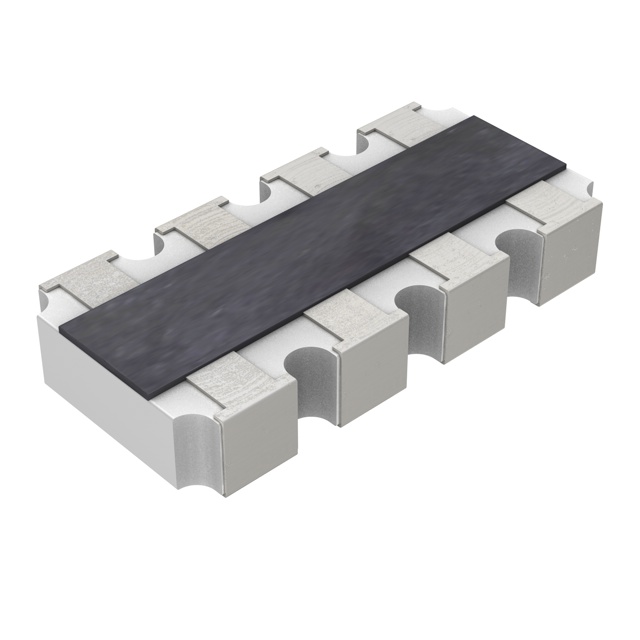

YC164-FR Series
Manufacturer: YAGEO
Catalog
RES ARRAY 4 RES 27K OHM 1206
...
| Part | Circuit Type | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Qualification | Package / Case | Number of Pins | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Power Per Element | Resistance (Ohms) [custom] | Grade | Number of Resistors | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | 27 kOhms | Automotive | 4 | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | Automotive | 4 | 62 Ohms | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | 2.4 kOhms | Automotive | 4 | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | 226 Ohms | Automotive | 4 | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | Automotive | 4 | 1k | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | Automotive | 4 | 3.9 Ohms | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | 560 Ohms | Automotive | 4 | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | Automotive | 4 | 5.6 kOhms | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | 1.3 kOhms | Automotive | 4 | ||
YAGEO | Isolated | 1 % | 0.7 mm | 0.028 " | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) Convex Long Side Terminals | 8 | 155 C | -55 C | DDRAM SDRAM | 62.5 mW | Automotive | 4 | 21 kOhms |
