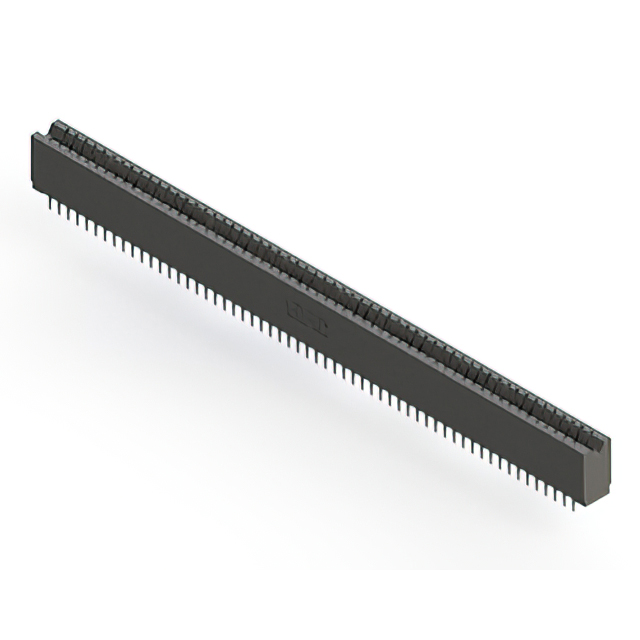

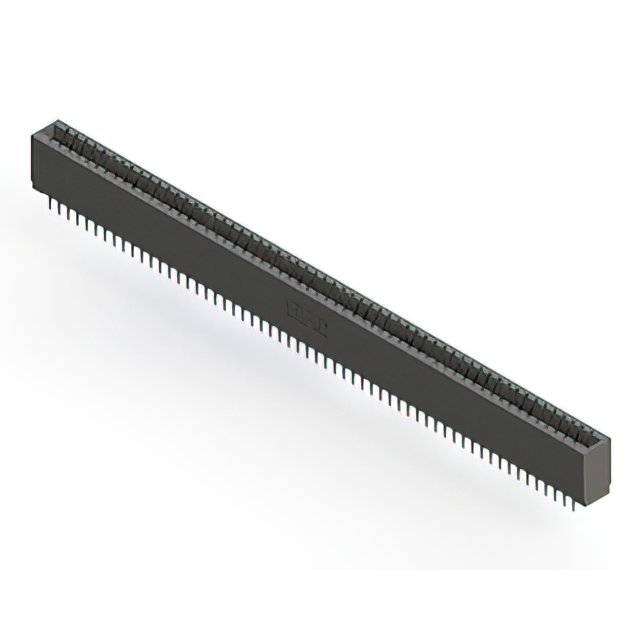

746-116 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 116POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Gender	Pitch	Pitch	Color	Number of Positions/Bay/Row	Contact Material	Number of Positions	Card Type	Contact Type	Contact Finish	Termination	Read Out	Mounting Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 746-116-525-606	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-527-606	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-541-606	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit Wire Wrap	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-525-201	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-553-606	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit Wire Wrap	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-520-606	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-545-201	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit Wire Wrap	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-525-206	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-545-606	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit Wire Wrap	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-116-541-601	Polyester Thermoplastic	2	Female	3.18 mm	0.125 in	Black	58	Copper Alloy	116	Non Specified - Dual Edge	Cantilever	Gold	Press-Fit Wire Wrap	Dual	Through Hole	2	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm
