CFS-0102 Series

Catalog

SWITCH SLIDE OFF ON SPST CONVEX KNOB 0.1A 24VDC GULL WING SMD T/R

Part	Contact Finish	Termination Style	Voltage Rating	Length [x]	Length [x]	Contact Material	Actuator Level	Current Rating (Amps)	Height Above Board	Height Above Board	Circuit	Number of Positions	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Mounting Type
Nidec Components Corporation CFS-0102TB	Gold	Gull Wing	6 VDC	3.96 mm	0.156 "	Copper Alloy	Raised	100 mA	0.169 in	4.3 mm	SPST	1	Slide (Standard)	0.1 in	Full	2.54 mm	1000 Cycles	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	Surface Mount
Nidec Components Corporation CFS-0102MB	Gold	Gull Wing	6 VDC	3.96 mm	0.156 "	Copper Alloy	Raised	100 mA	0.169 in	4.3 mm	SPST	1	Slide (Standard)	0.1 in	Full	2.54 mm	1000 Cycles	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	Surface Mount
Nidec Components Corporation CFS-0102TA	Gold	J Lead	6 VDC	3.96 mm	0.156 "	Copper Alloy	Raised	100 mA	0.177 in	4.5 mm	SPST	1	Slide (Standard)	0.1 in	Full	2.54 mm	1000 Cycles	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	Surface Mount

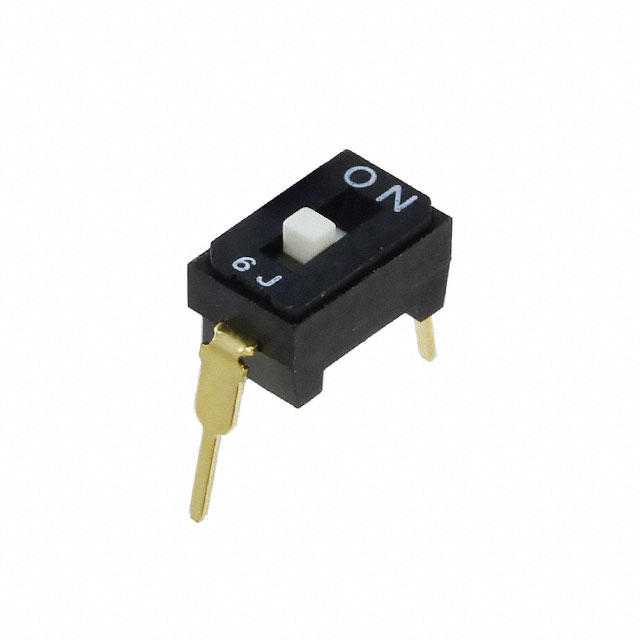

Nidec Components Corporation CFS-0102MC	Gold	PC Pin	6 VDC	3.96 mm	0.156 "	Copper Alloy	Raised	100 mA	0.201 in	5.1 mm	SPST	1	Slide (Standard)	0.1 in	Full	2.54 mm	1000 Cycles	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	Through Hole
