7939A Series
Manufacturer: Belden Inc.
Beta
⌘K

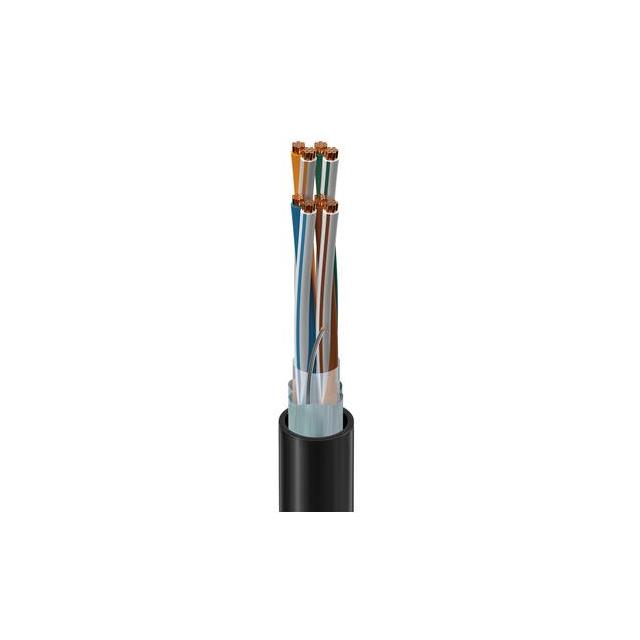

CABLE CAT5E 8CON 24AWG
| Part | Shield Coverage | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Number of Conductors | Conductor Insulation | Conductor Insulation | Features | Length | Length | Wire Gauge | Usage | Conductor Material | Voltage | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length [x] | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | -40 C | 75 ░C | 7 | 32 AWG | Foil | 0.295 " | 7.49 mm | UL Style CMR | 8 | Polyolefin | PO | Drain Wire | 304.8 m | 1000 ft | 24 AWG | Industrial Network | Copper Bare | 300 VDC | Poly-Vinyl Chloride (PVC) | Teal | 0.03 in | 0.762 mm | Multi-Pair Cat5e | |||
Belden Inc. | 100 % | Aluminum | -40 C | 75 ░C | 7 | 32 AWG | Foil | 0.295 " | 7.49 mm | UL Style CMR | 8 | Polyolefin | PO | Drain Wire | 24 AWG | Industrial Network | Copper Bare | 300 VDC | Poly-Vinyl Chloride (PVC) | Black | 0.03 in | 0.762 mm | Multi-Pair Cat5e | 2000 ft | 609.6 m | Enter Number of Feet in Order Quantity | ||
Belden Inc. | 100 % | Aluminum | -40 C | 75 ░C | 7 | 32 AWG | Foil | 0.295 " | 7.49 mm | UL Style CMR | 8 | Polyolefin | PO | Drain Wire | 304.8 m | 1000 ft | 24 AWG | Industrial Network | Copper Bare | 300 VDC | Poly-Vinyl Chloride (PVC) | Blue | 0.03 in | 0.762 mm | Multi-Pair Cat5e | |||
Belden Inc. | 100 % | Aluminum | -40 C | 75 ░C | 7 | 32 AWG | Foil | 0.295 " | 7.49 mm | UL Style CMR | 8 | Polyolefin | PO | Drain Wire | 304.8 m | 1000 ft | 24 AWG | Industrial Network | Copper Bare | 300 VDC | Poly-Vinyl Chloride (PVC) | Gray | 0.03 in | 0.762 mm | Multi-Pair Cat5e |
