IRM-30 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 30W
| Part | Minimum Load Required | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Voltage - Isolation | Features | Current - Output 1 | Power (Watts) | Applications | Type | Approval Agency | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Line Regulation | Load Regulation | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Current - Output (Max) [Max] | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

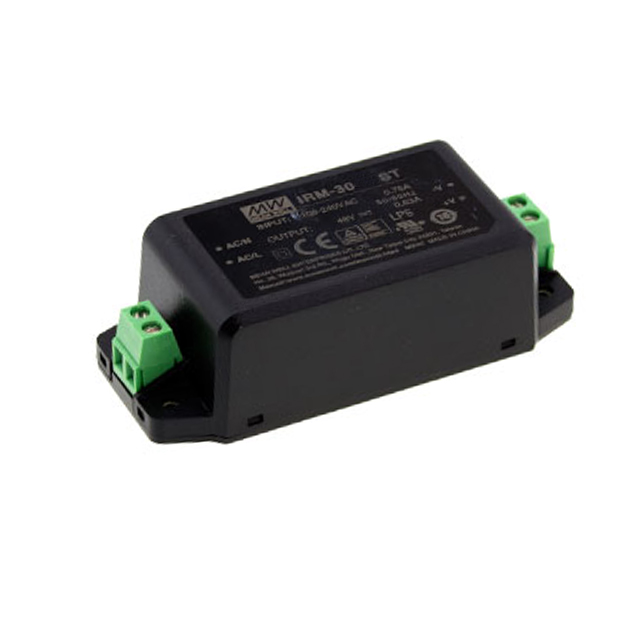

 MEAN WELL USA Inc. | 90 % | -30 °C | 70 °C | 39.5 mm | 3.58 in | 1.12 " | 28.5 mm | 91 mm | 1.56 " | Chassis Mount | 3000 V | Universal Input | 630 mA | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 305 VAC | 85 VAC | 48 V | ||||||||

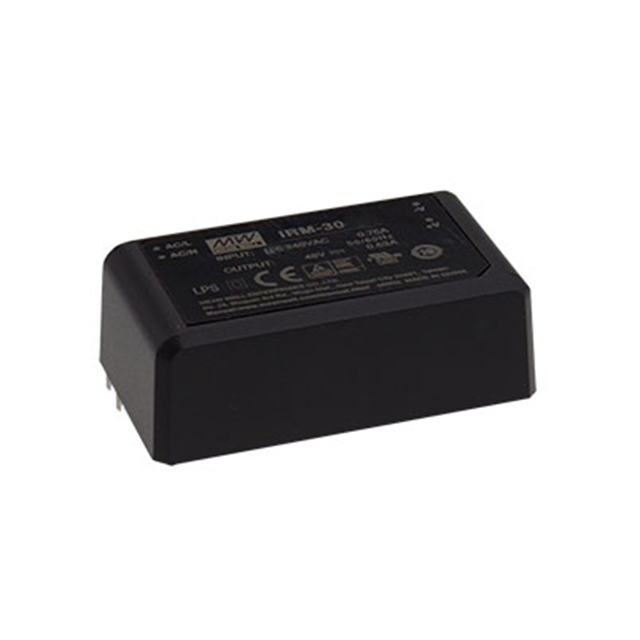

 MEAN WELL USA Inc. | 88 % | -30 °C | 70 °C | 2.74 " | 0.94 " | 69.5 mm | 1.54 in | Through Hole | Universal Input | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 15 V | 0.5 % | 0.5 % | 24 mm | 39 mm | 4-DIP Module | 2 A | ||||||||
MEAN WELL USA Inc. | 88.5 % | -30 °C | 70 °C | 39.5 mm | 3.58 in | 1.12 " | 28.5 mm | 91 mm | 1.56 " | Chassis Mount | 3000 V | Universal Input | 1.3 A | 31 W | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 305 VAC | 85 VAC | 24 V | ||||||||
MEAN WELL USA Inc. | 88.5 % | -30 °C | 70 °C | 2.74 " | 0.94 " | 69.5 mm | 1.54 in | Through Hole | Universal Input | 31 W | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 24 V | 0.5 % | 0.5 % | 24 mm | 39 mm | 4-DIP Module | 1.3 A | ||||||||
MEAN WELL USA Inc. | 88 % | -30 °C | 70 °C | 39.5 mm | 3.58 in | 1.12 " | 28.5 mm | 91 mm | 1.56 " | Chassis Mount | 3000 V | Universal Input | 2.5 A | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 305 VAC | 85 VAC | 12 V | ||||||||
MEAN WELL USA Inc. | 88 % | -30 °C | 70 °C | 39.5 mm | 3.58 in | 1.12 " | 28.5 mm | 91 mm | 1.56 " | Chassis Mount | 3000 V | Universal Input | 2 A | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 305 VAC | 85 VAC | 15 V | ||||||||
MEAN WELL USA Inc. | 83 % | -30 °C | 70 °C | 2.74 " | 0.94 " | 69.5 mm | 1.54 in | Through Hole | Universal Input | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 5 V | 0.5 % | 24 mm | 39 mm | 4-DIP Module | 6 A | ±1% | ||||||||
MEAN WELL USA Inc. | 90 % | -30 °C | 70 °C | 2.74 " | 0.94 " | 69.5 mm | 1.54 in | Through Hole | Universal Input | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 48 V | 0.5 % | 0.5 % | 24 mm | 39 mm | 4-DIP Module | 630 mA | ||||||||
MEAN WELL USA Inc. | 88 % | -30 °C | 70 °C | 2.74 " | 0.94 " | 69.5 mm | 1.54 in | Through Hole | Universal Input | 30 Watts | ITE (Commercial) | Enclosed | CB CE cURus TUV | 1 | 12 V | 0.5 % | 0.5 % | 24 mm | 39 mm | 4-DIP Module | 2.5 A |
