RITS Header Connectors PCB Mount Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HDR 8POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Material	Contact Shape	Mounting Type	Insulation Color	Connector Type	Contact Type	Fastening Type	Contact Finish - Post	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Features	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]
TE Connectivity AMP Connectors 1473565-8	78.7 µin	2 µm	Copper Alloy	Square	Through Hole	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	13 mm	0.512 in	All	UL94 V-0	Gold	8	8 µin	0.203 µm	32 V	0.13 "	3.3 mm	1	Board Guide	0.079 "	2 mm	75 ░C	-30 ░C	Press-Fit Solder

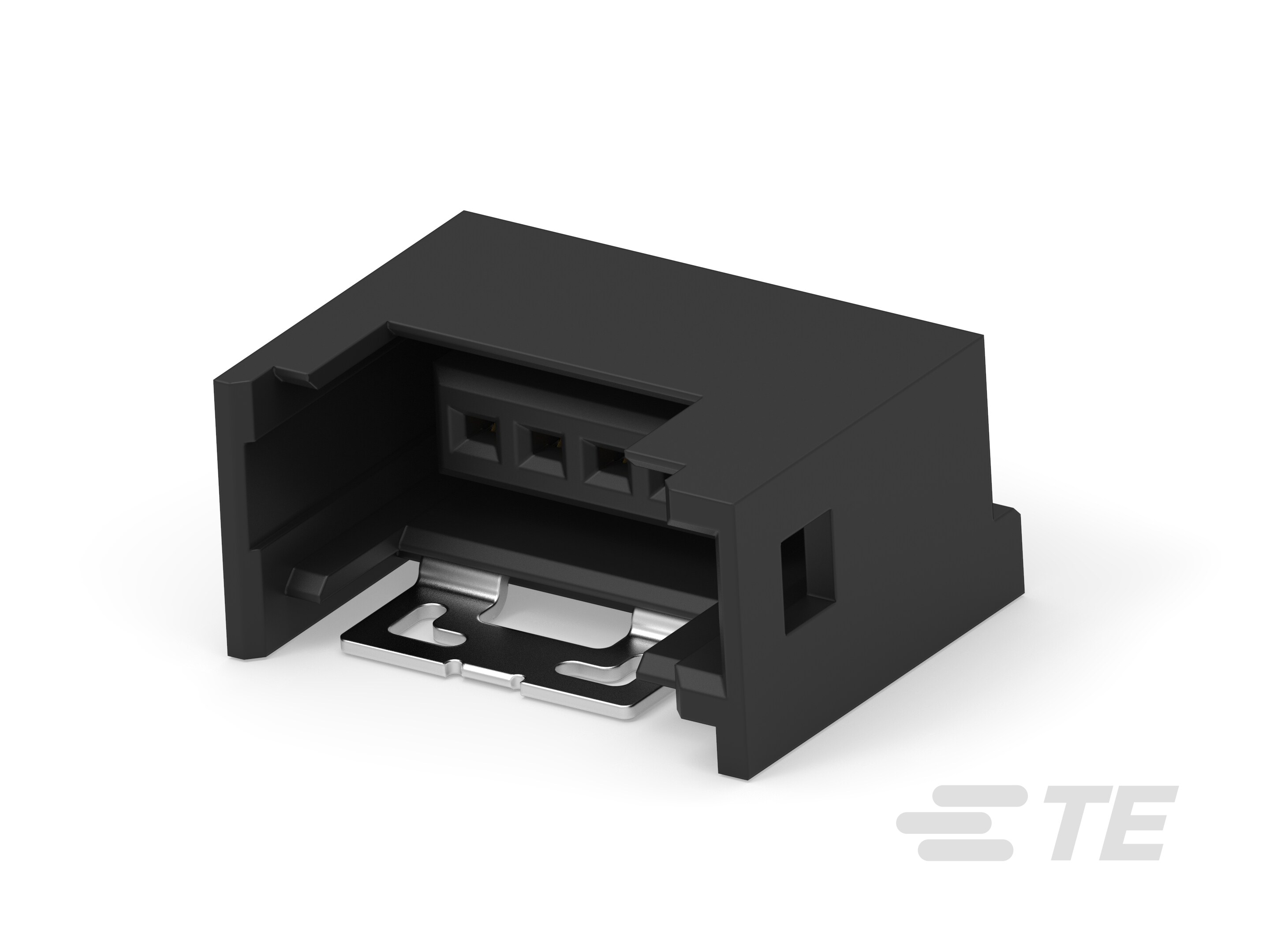

TE Connectivity AMP Connectors 1-1565994-4			Copper Alloy	Square	Right Angle Surface Mount	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	7.7 mm	0.303 in	All	UL94 V-0	Gold	4	8 µin	0.203 µm	32 V			1		0.079 "	2 mm	75 ░C	-30 ░C	Solder	39.4 çin	1 çm	Thermoplastic
TE Connectivity AMP Connectors 2309223-1

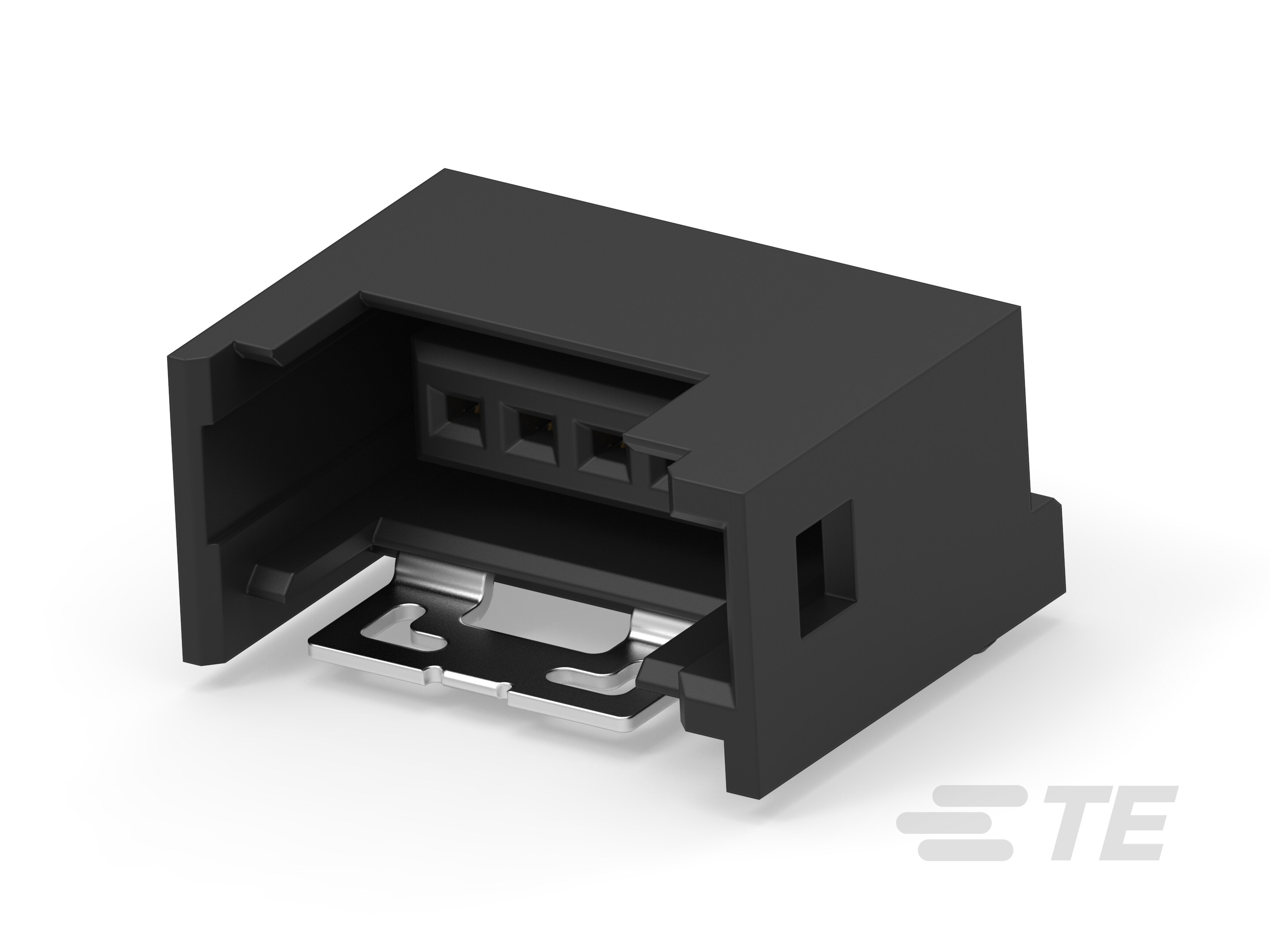

TE Connectivity AMP Connectors 1565994-4					Right Angle Surface Mount	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	7.7 mm	0.303 in	All	UL94 V-0	Gold	4	8 µin	0.203 µm	32 V			1	Board Guide	0.079 "	2 mm	75 ░C	-30 ░C	Solder

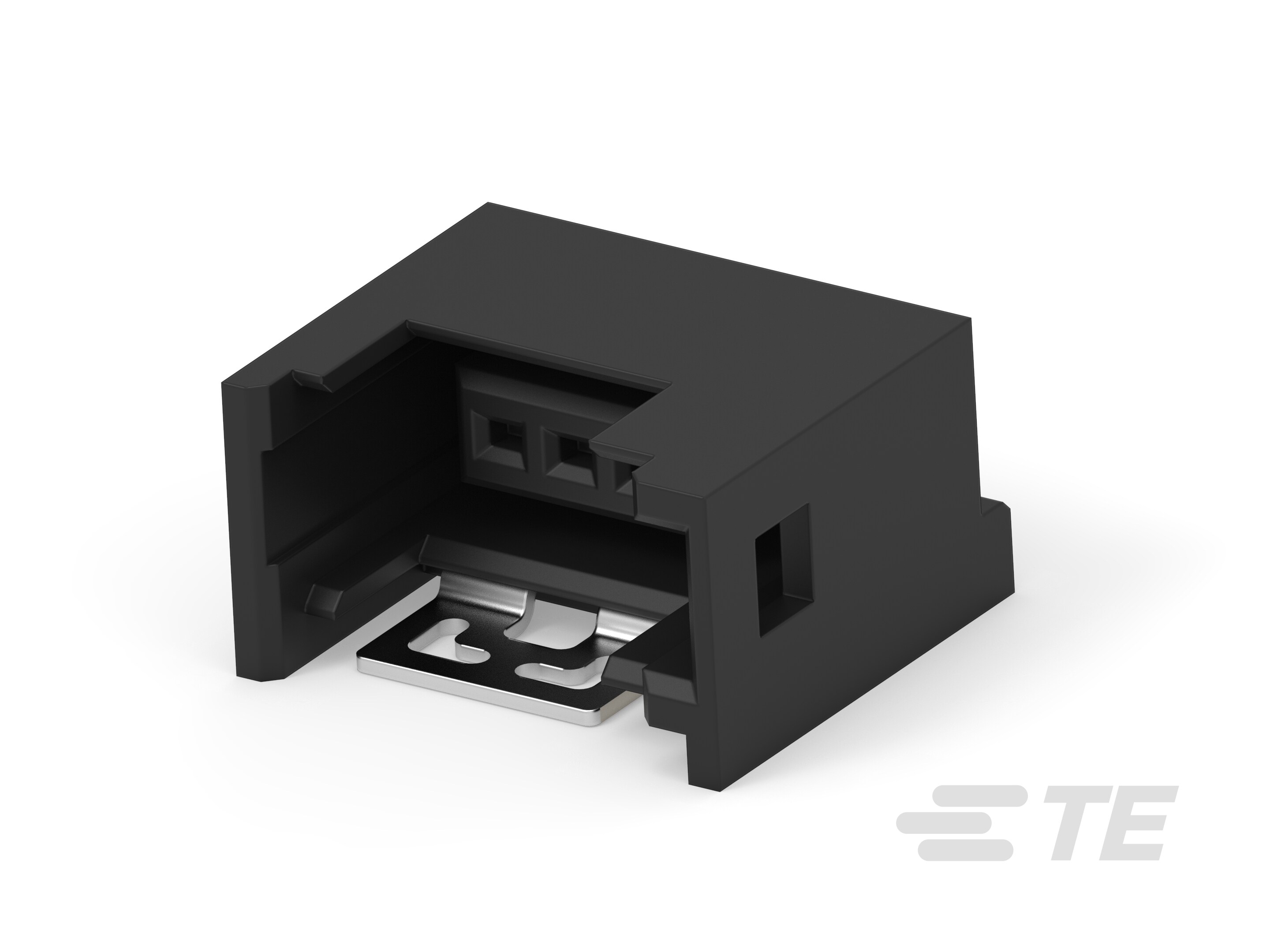

TE Connectivity AMP Connectors 1-1565994-3			Copper Alloy	Square	Right Angle Surface Mount	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	7.7 mm	0.303 in	All	UL94 V-0	Gold		8 µin	0.203 µm	32 V			1		0.079 "	2 mm	75 ░C	-30 ░C	Solder	39.4 çin	1 çm	Thermoplastic
TE Connectivity AMP Connectors 1473565-7					Through Hole	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	13 mm	0.512 in	All	UL94 V-0	Gold	7	8 µin	0.203 µm	32 V	0.13 "	3.3 mm	1	Board Guide	0.079 "	2 mm	75 ░C	-30 ░C	Press-Fit Solder

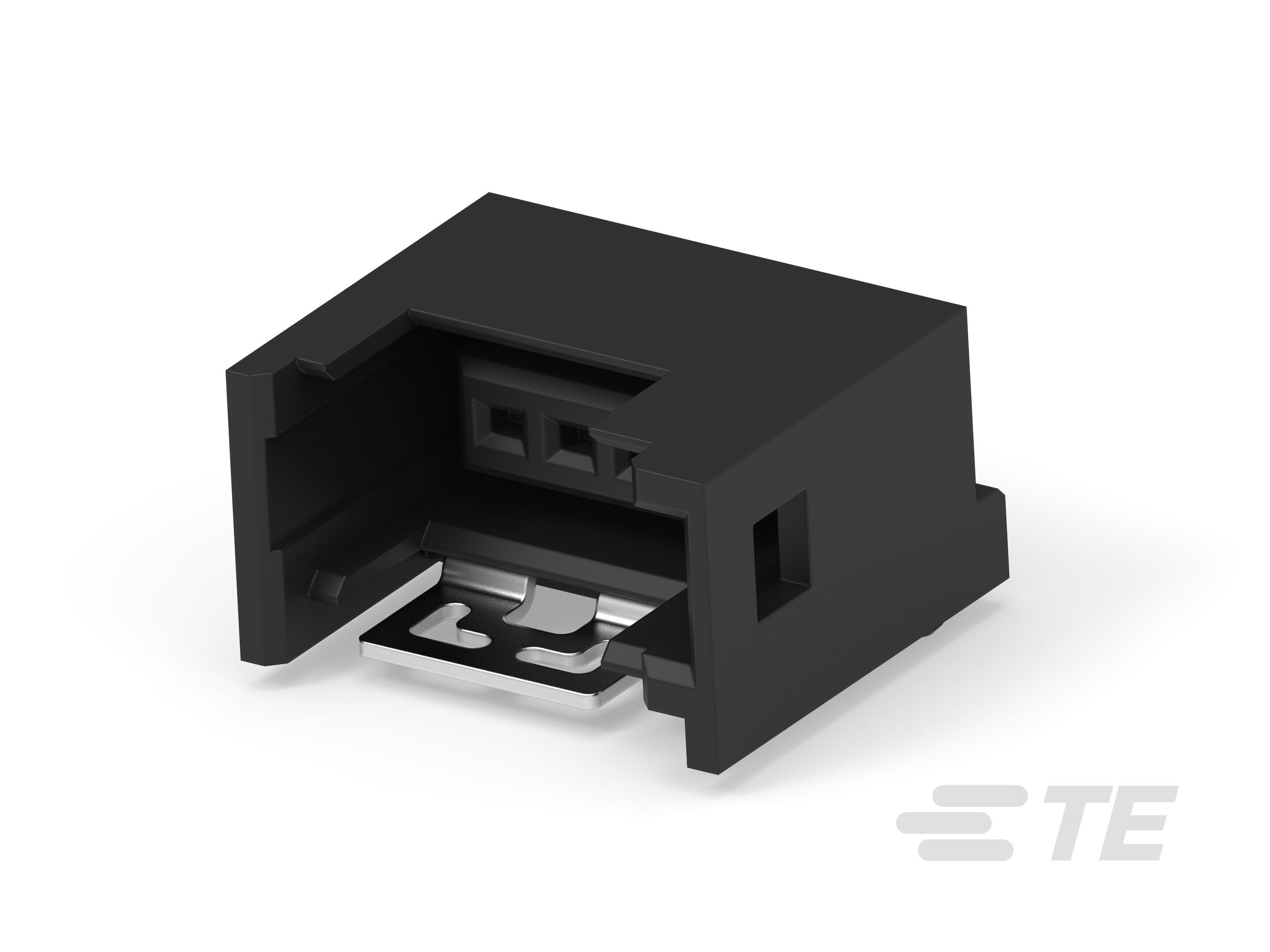

TE Connectivity AMP Connectors 1565994-3					Right Angle Surface Mount	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	7.7 mm	0.303 in	All	UL94 V-0	Gold		8 µin	0.203 µm	32 V			1	Board Guide	0.079 "	2 mm	75 ░C	-30 ░C	Solder
TE Connectivity AMP Connectors 1473565-4					Through Hole	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	13 mm	0.512 in	All	UL94 V-0	Gold	4	8 µin	0.203 µm	32 V	0.13 "	3.3 mm	1	Board Guide	0.079 "	2 mm	75 ░C	-30 ░C	Press-Fit Solder

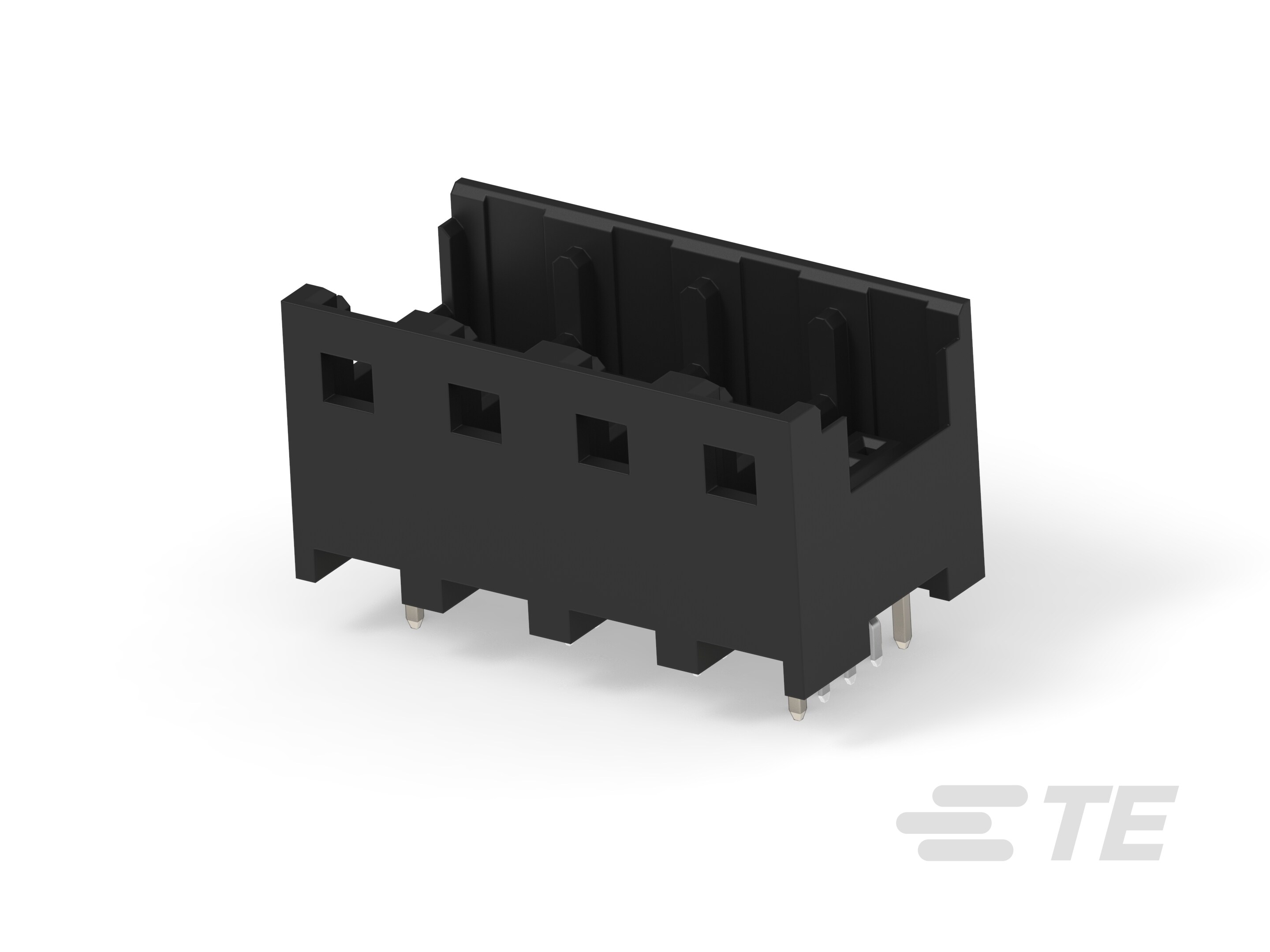

TE Connectivity AMP Connectors 1473567-3					Through Hole	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	13 mm	0.512 in	All	UL94 V-0	Gold	12	8 µin	0.203 µm	32 V	0.13 "	3.3 mm			0.079 "	2 mm	75 ░C	-30 ░C	Press-Fit Solder				0.256 in	6.5 mm
TE Connectivity AMP Connectors 1473565-3					Through Hole	Black	Header	Female Socket	Latch Holder	Tin	Board to Cable/Wire	13 mm	0.512 in	All	UL94 V-0	Gold		8 µin	0.203 µm	32 V	0.13 "	3.3 mm	1	Board Guide	0.079 "	2 mm	75 ░C	-30 ░C	Press-Fit Solder
