IPD3012 Series
Manufacturer: Inventus Power
Beta
⌘K

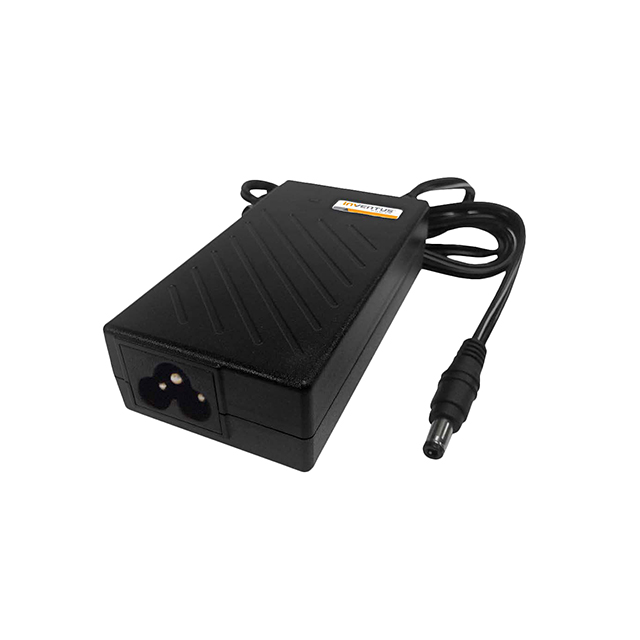

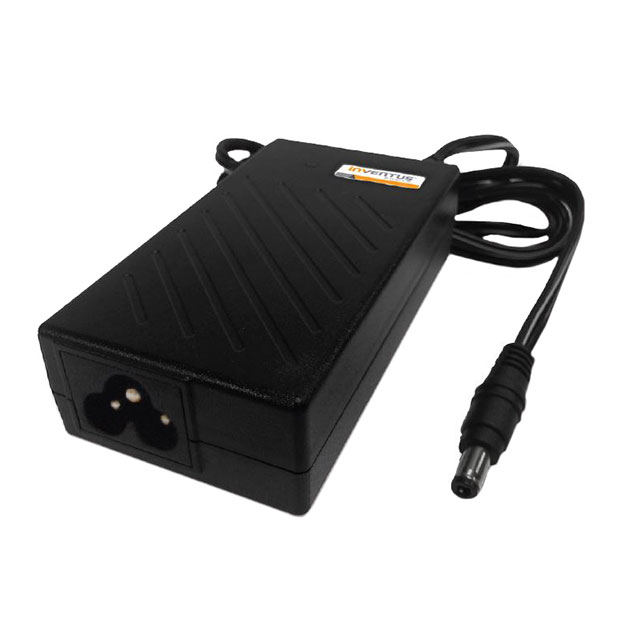

AC/DC DESKTOP ADAPTER 12V 30W
| Part | Weight | Weight | Input Connector | Power (Watts) | Efficiency | Current - Output (Max) [Max] | Input Type | No Load Power Consumption | Polarization | Output Connector | Output Connector [diameter] | Output Connector [x] | Region Utilized | Cord Length | Cord Length | Voltage - Output | Form | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inventus Power | 0.35 lb | 160 g | IEC 320-C6 | 30 Watts | Level VI | 2.5 A | Cord (Sold Separately) | 100 mW | Positive Center | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm | North America | 1.22 m | 48 in | 12 V | Desktop (Class I) | 48.8 mm | 89.6 mm | 25.2 mm | 1.92 in | 3.53 " | 0.99 " | ITE (Commercial) | 0 °C | 60 °C | CE cTUVus |
 Inventus Power | 0.35 lb | 160 g | IEC 320-C6 | 30 Watts | Level VI | 2.5 A | Cord (Sold Separately) | 100 mW | Positive Center | Barrel Plug | 2.5 mm 5.5 mm | 9.5 mm | North America | 1.22 m | 48 in | 12 V | Desktop (Class I) | 48.8 mm | 89.6 mm | 25.2 mm | 1.92 in | 3.53 " | 0.99 " | ITE (Commercial) | 0 °C | 60 °C | CE cTUVus |
