9WV1248 Series

Catalog

DC FAN AXIAL BALL BEARING 48V 40.8V TO 55.2V 224CFM 64DB 120 X 120 X 38MM

Part	Material - Frame	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Width [y]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Bearing Type	Static Pressure	Static Pressure	Weight	Weight	Power (Watts)	RPM	Fan Type	Features	Noise	Ingress Protection	Weight [custom]	Weight [custom]

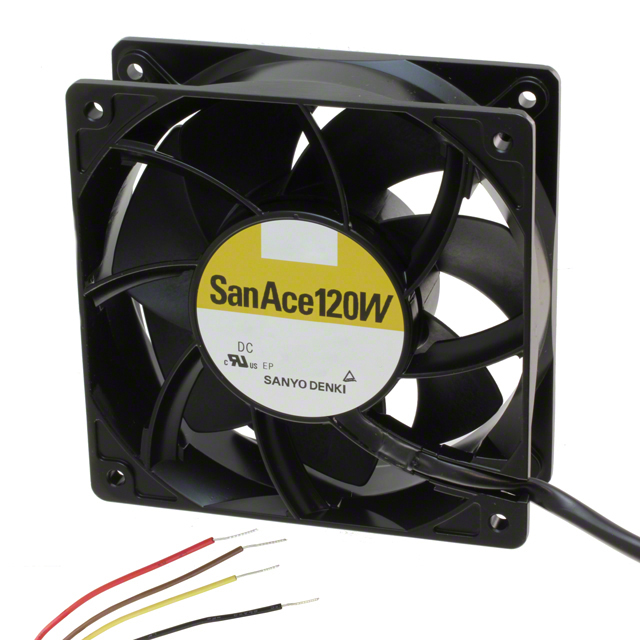

Sanyo Denki America Inc. 9WV1248P1J001	Aluminum	224 CFM	6.27 mł/min	55.2 VDC	40.8 VDC	650 mA	Plastic	-20 ░C	70 °C	4 Wire Leads	38 mm	CSA TUV UL	120 mm	120 mm	48 VDC	Ball	361.2 Pa	1.45 in H2O	439.98 g	0.97 lb	31.2 W	6400 RPM	Tubeaxial	PWM Control Speed Sensor (Tach)	64 dB(A)	IP68 - Dust Tight Waterproof
Sanyo Denki America Inc. 9WV1248J1001	Aluminum	224 CFM	6.27 mł/min	55.2 VDC	40.8 VDC	650 mA	Plastic	-20 ░C	70 °C	3 Wire Leads	38 mm	CSA TUV UL	120 mm	120 mm	48 VDC	Ball	361.2 Pa	1.45 in H2O			31.2 W	6400 RPM	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	64 dB(A)	IP68 - Dust Tight Waterproof	0.97 lb	440 g
Sanyo Denki America Inc. 9WV1248J1D001	Aluminum	224 CFM	6.27 mł/min	55.2 VDC	40.8 VDC	650 mA	Plastic	-20 ░C	70 °C	3 Wire Leads	38 mm	CSA TUV UL	120 mm	120 mm	48 VDC	Ball	361.2 Pa	1.45 in H2O			31.2 W	6400 RPM	Tubeaxial	Locked Rotor Sensor	64 dB(A)	IP68 - Dust Tight Waterproof	0.97 lb	440 g
